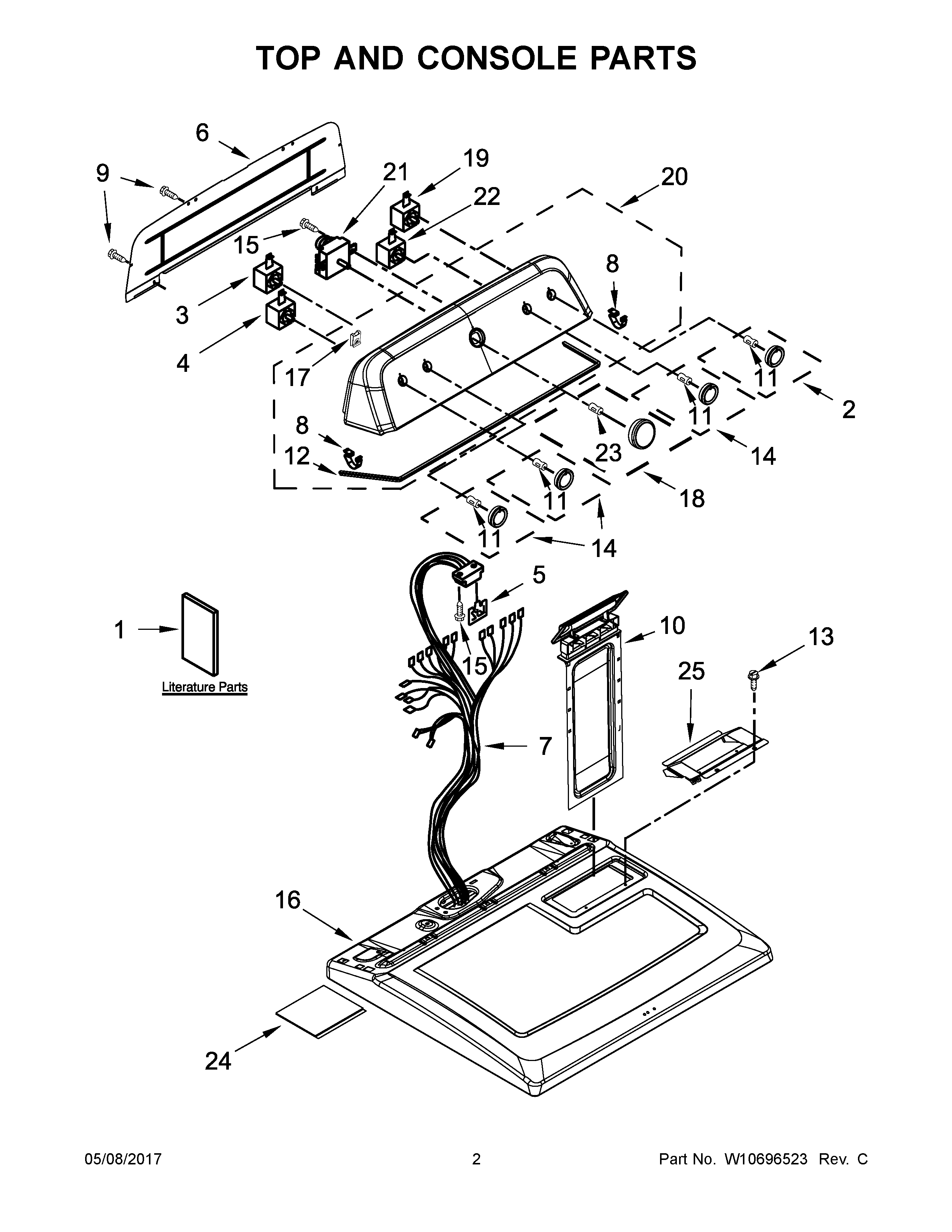

MGDX6STBW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	DIAGRAM, WIRING
1A	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
2	ASSEMBLY, PUSH TO START KNOB (GREY)
3	MAY W10627711
4	SWITCH, ROTARY (TEMPERATURE)
5	MAY W10476828
6	MAY W10416486
7	HARNESS, MAIN
8	MAY 8312709
9	Screw
10	LINT SCREEN (WHITE)
11	CLIP, SPRING
12	MAY W10588162
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	TOP (WHITE)
17	NUT, "U"
18	MAY W10558463
19	MAY W10563095
20	ASSEMBLY, CONSOLE (WHITE)
21	ASSEMBLY, TIMER
22	SWITCH, ROTARY (WRINKLE CONTROL)
23	Spring, Clip Knob
24	MAY W10123956
25	COLLAR, LINT CHUTE
