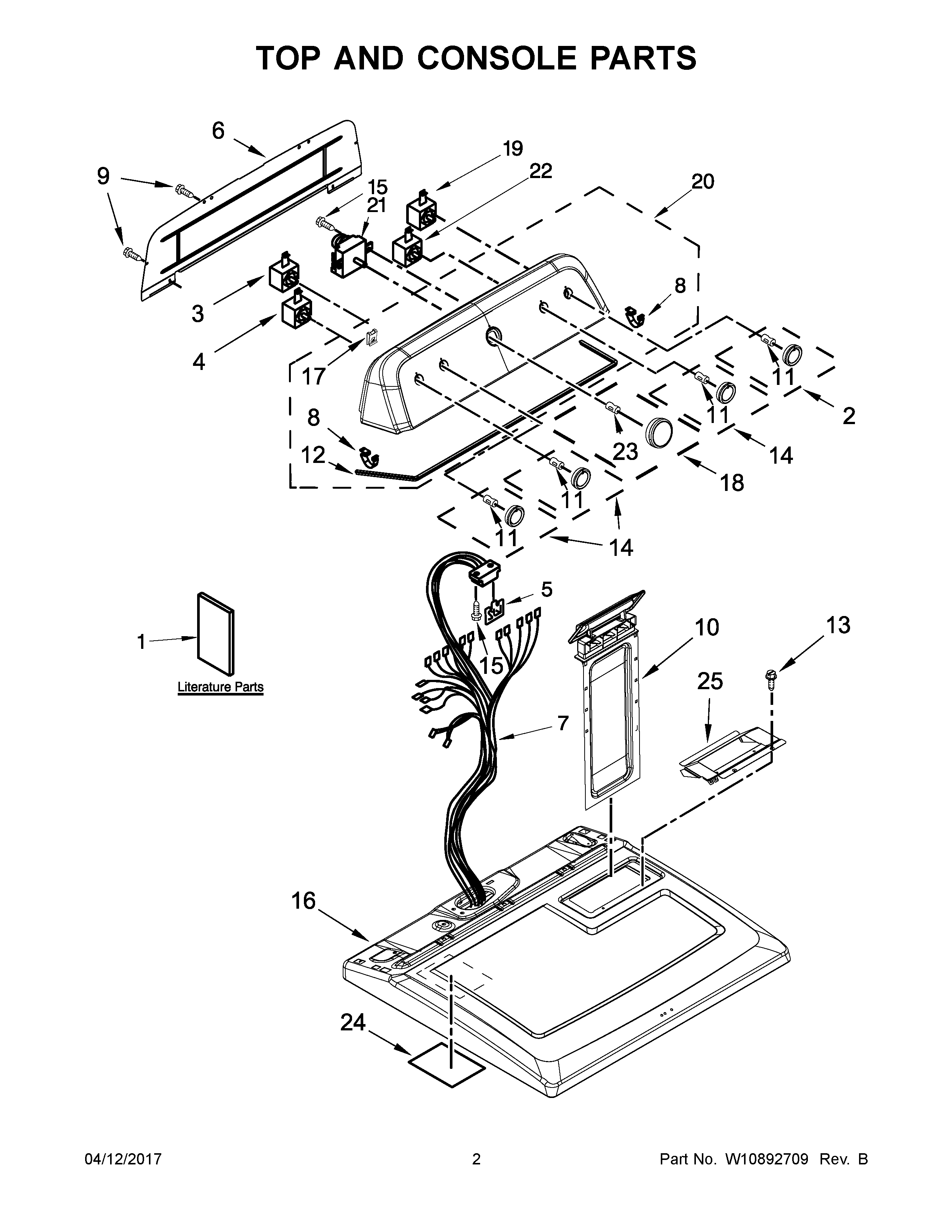

MGDX6STBW2 02 – TOP AND CONSOLE PARTS

MGDX6STBW2 02 – TOP AND CONSOLE PARTS

Written by

in

MGDX6STBW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1AMAY W10848818
1BDIAGRAM, WIRING
2ASSEMBLY, PUSH TO START KNOB (GREY)
3MAY W10627711
4SWITCH, ROTARY (TEMPERATURE)
5MAY W10476828
6MAY W10416486
7HARNESS, MAIN
8MAY 8312709
9Screw
10LINT SCREEN (WHITE)
11CLIP, SPRING
12MAY W10588162
13SCREW
14MAY W10562155
15MAY 3348629
16TOP (WHITE)
17NUT, "U"
18MAY W10558463
19MAY W10563095
20ASSEMBLY, CONSOLE (WHITE)
21ASSEMBLY, TIMER
22SWITCH, ROTARY (WRINKLE CONTROL)
23Spring, Clip Knob
24MAY W10836097
25COLLAR, LINT CHUTE
