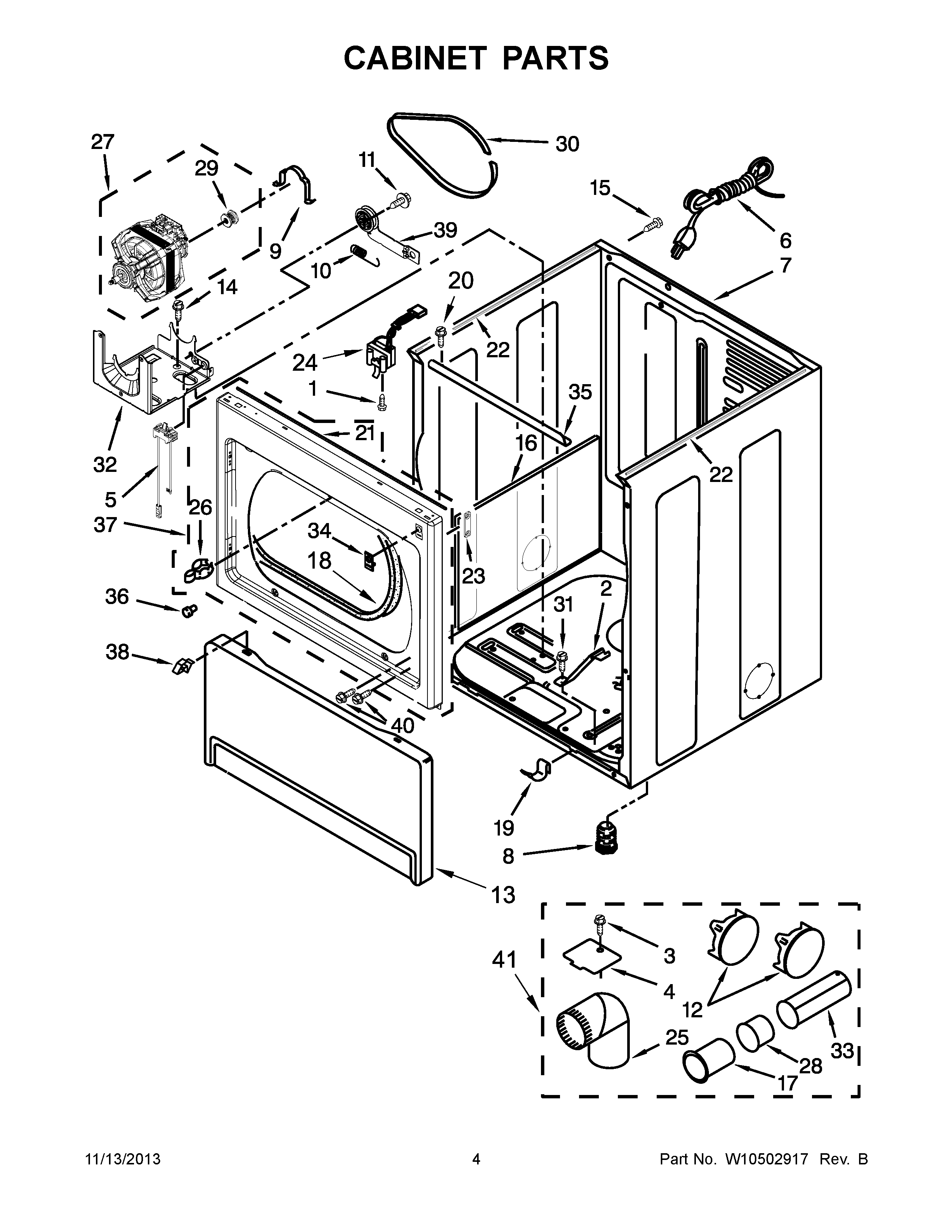

MGDX700AG0 03 – CABINET PARTSadmin2025-04-26T11:33:10+00:00MGDX700AG0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | SCREW |
| 2 | MAY 8529757 |
| 3 | MAY 488729 |
| 4 | MAY W10354249 |
| 5 | MAY W10411936 |
| 6 | MAY W10440460 |
| 7 | MAY W10459657 |
| 8 | MAY 3392100 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | PLUG, MULTIVENT (MIDNIGHT GREY) |
| 13 | TOE, PANEL (COSMETALLIC) |
| 14 | SCREW |
| 15 | MAY 8533971 |
| 16 | MAY W10123956 |
| 17 | PIPE, EXHAUST (MEDIUM) |
| 18 | MAY 3387242 |
| 19 | CLIP |
| 20 | SCREW |
| 21 | SEAL, SPILL GUARD |
| 22 | SEAL, FOAM |
| 23 | PLUG, FRONT PANEL (SILVER) |
| 24 | Switch, Door |
| 25 | MAY 49026 |
| 26 | Strike, Door |
| 27 | ASSEMBLY, MOTOR |
| 28 | PIPE, EXHAUST (SHORT) |
| 29 | MAY W10460106 |
| 30 | MAY W10112954 |
| 31 | Screw |
| 32 | MAY W10242878 |
| 33 | PIPE, EXHAUST (LONG) |
| 34 | MAY W10097055 |
| 35 | BRACKET, CABINET |
| 36 | BUMPER |
| 37 | MAY W10461887 |
| 38 | RETAINER |
| 39 | ASSEMBLY, IDLER |
| 40 | SCREW |
| 41 | DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY) |
