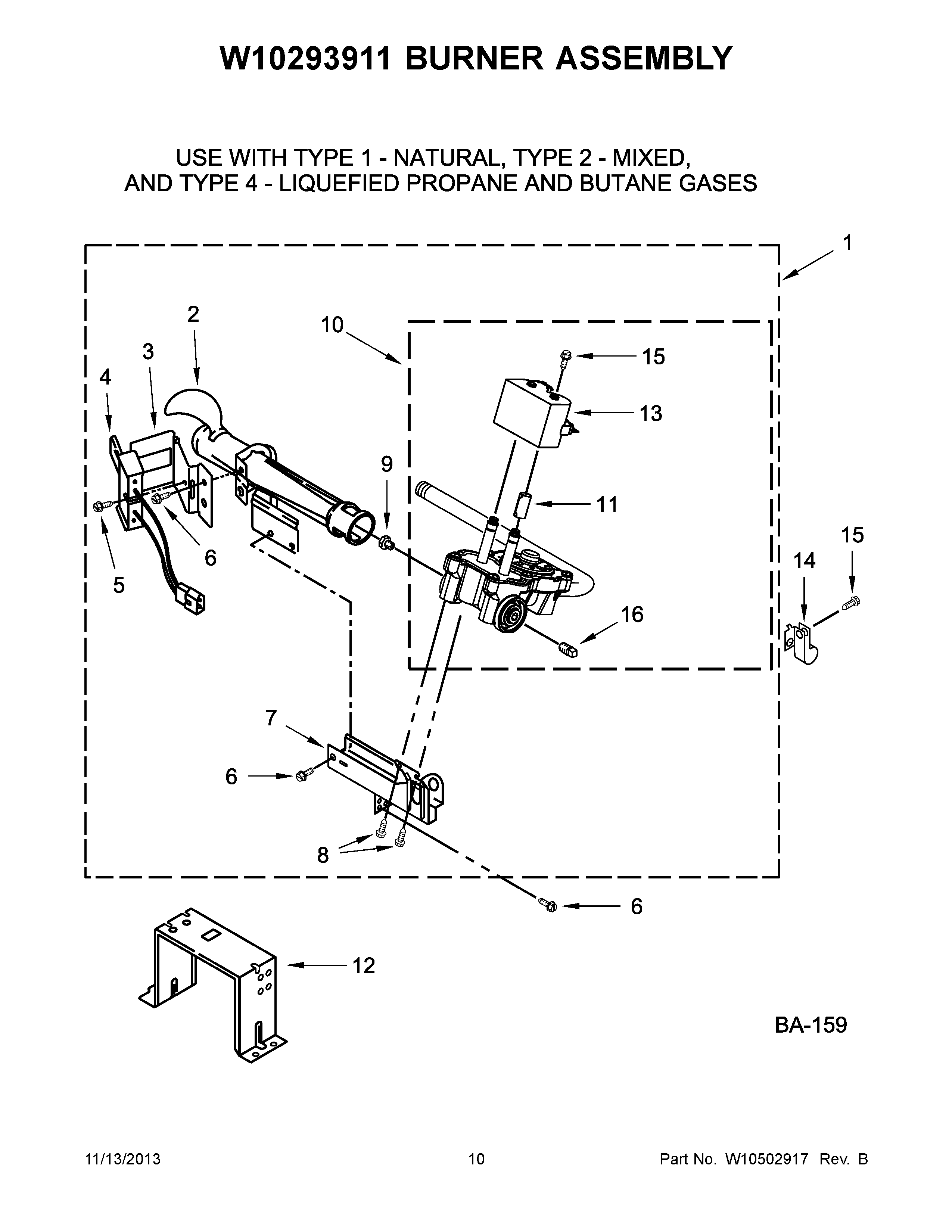

MGDX700AG0 06 – W10293911 BURNER ASSEMBLY

MGDX700AG0 06 – W10293911 BURNER ASSEMBLY

Written by

in

MGDX700AG0 06 – W10293911 BURNER ASSEMBLY

Products

PositionProduct
NIMAY W10293913
NILINER (NOT A SERVICEABLE PART)
1MAY W10293911
2MAY 688617
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY 3389871
8SCREW
9Orifice, Burner (Type 4 (Butane))
9ORIFICE, BURNER (TYPE 1 (NATURAL))
9Orifice, Burner (Type 4 (Propane))
10MAY W10175144
11SLEEVE-MAGNETIC
12MAY 3389889
13MAY W10328463
14MAY 3978776
16SCREW
17MAY W10295523
