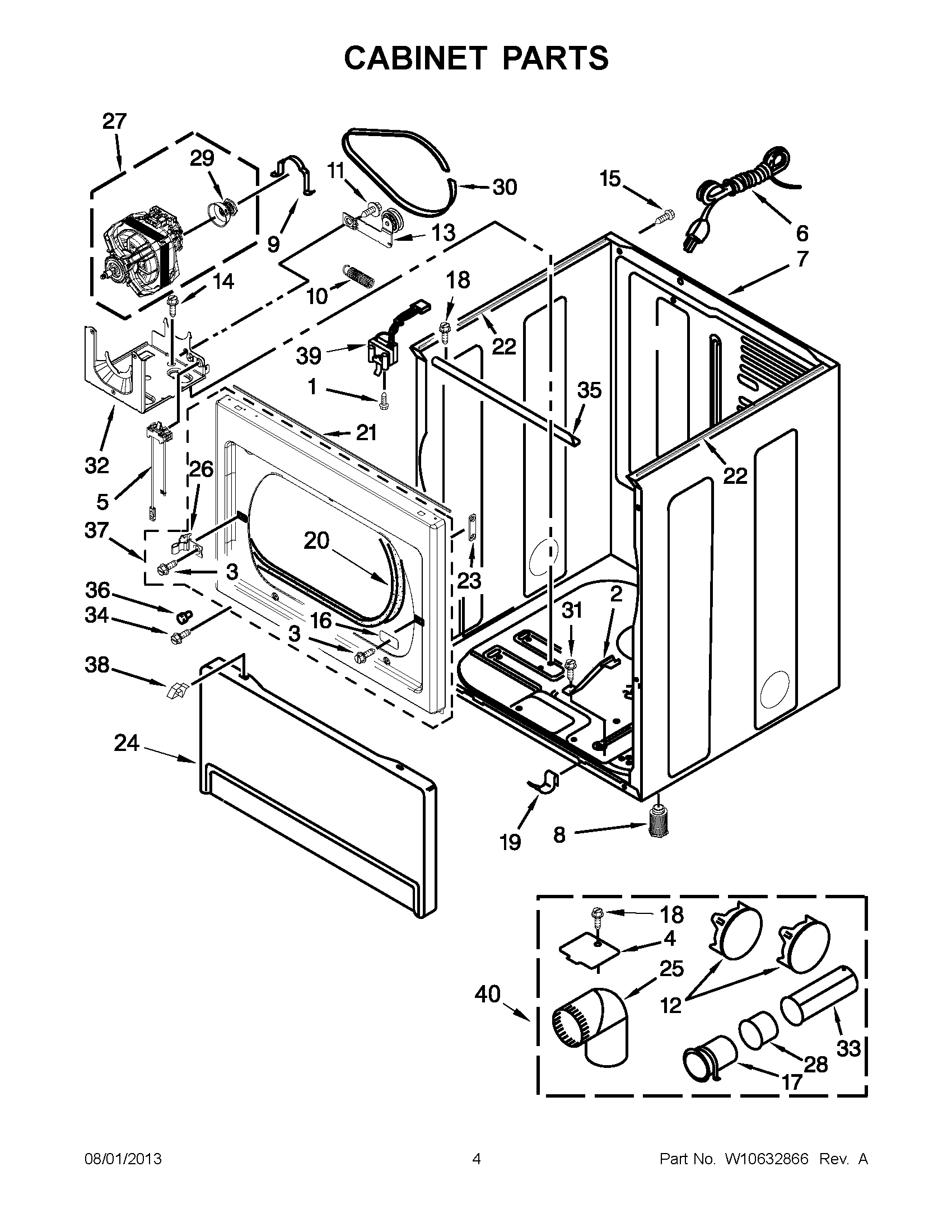

MGDX700AG1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY 8529757
3	MAY 342055
4	MAY W10354249
5	MAY W10411936
6	MAY 344020
7	MAY W10547700
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	ASSEMBLY, IDLER
14	SCREW
15	MAY 359625
16	COVER, STRIKE (SILVER)
17	PIPE, EXHAUST (MEDIUM)
18	MAY 488729
19	CLIP
20	MAY 3387242
21	SEAL, SPILL GUARD
22	SEAL, FOAM
23	PLUG, FRONT PANEL (SILVER)
24	TOE, PANEL (COSMETALLIC)
25	MAY W10416072
26	Strike, Door
27	ASSEMBLY, MOTOR
28	PIPE, EXHAUST (SHORT)
29	MAY W10460106
30	MAY W10112954
31	Screw
32	MAY W10242878
33	PIPE, EXHAUST (LONG)
34	SCREW
35	BRACKET, CABINET
36	BUMPER
37	MAY W10461887
38	RETAINER
39	Switch, Door
40	KIT, 4-WAY VENT
