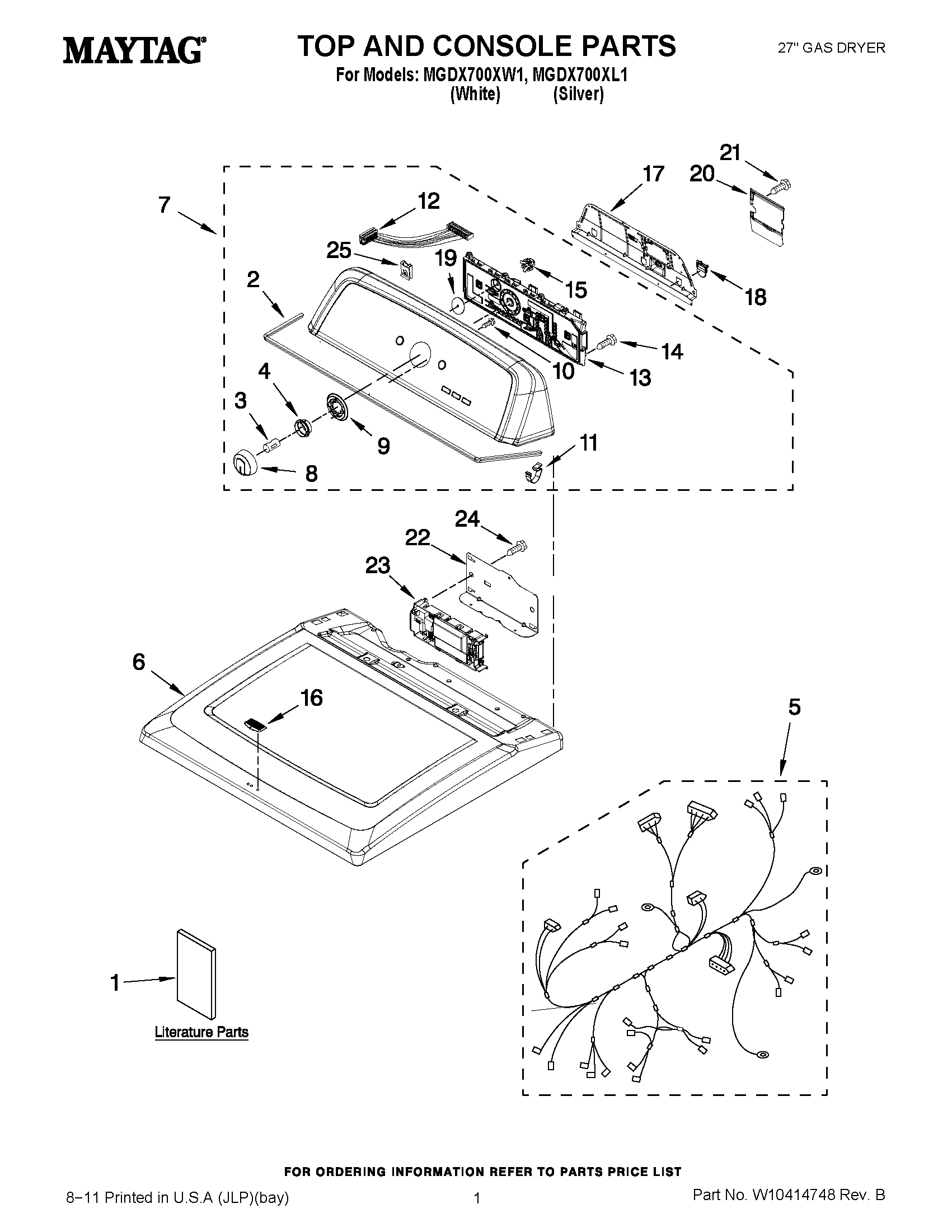

MGDX700XL1 01 – TOP AND CONSOLE PARTS

MGDX700XL1 01 – TOP AND CONSOLE PARTS

Written by

in

MGDX700XL1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTRUCTION INSTALLATION
1	MAY W10097036
1	MAY W10096989
2	MAY W10280079
3	CLIP, SPRING
4	MAY W10326923
5	MAIN HARNESS
6	TOP (SILVER)
6	MAY W10268730
7	MAY W10293248
7	MAY W10293249
8	MAY W10251381
8	KNOB, CONTROL (CHROME)
9	MAY W10305134
10	SCREW
11	MAY 8312709
12	HARNESS, USER INTERFACE
13	USER INTERFACE ASSEMBLY
14	MAY W10219342
15	TENSIONER, FASCIA
16	MAY W10323735
17	MAY W10096969
18	PLUG, UPPER REAR PANEL
19	SEAL, USER INTERFACE
20	MAY W10338363
21	Screw, 8-18 x 3/8
22	MAY W10271580
23	CCU-CONTROL
24	MAY 342055
25	NUT, "U"
