MGDX700XL2 04 – DOOR PARTS – Aparts

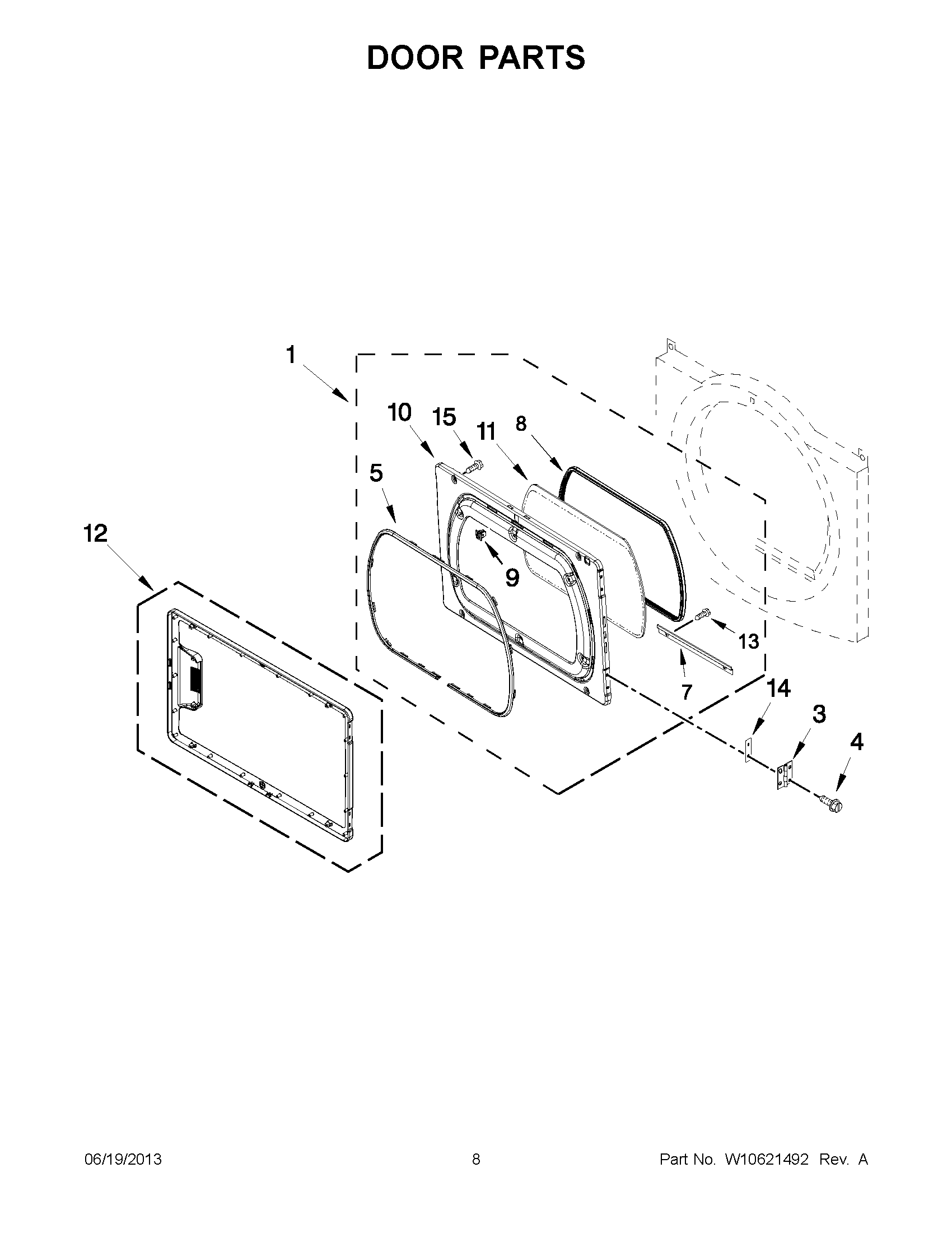

MGDX700XL2 04 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR (WHITE)
3	MAY W10330875
3	Hinge & Pin Assembly (2)
4	MAY 342055
5	SEAL, DOOR
7	MAY 8519354
8	SEAL, WINDOW
9	Catch, Door
10	DOOR, INNER (WHITE)
11	GLASS, DOOR
12	MAY W10284127
12	OUTER DOOR ASSEMBLY (SILVER)
13	Screw, 10-16 x 1/2
14	MAY 3390902
15	SCREW
