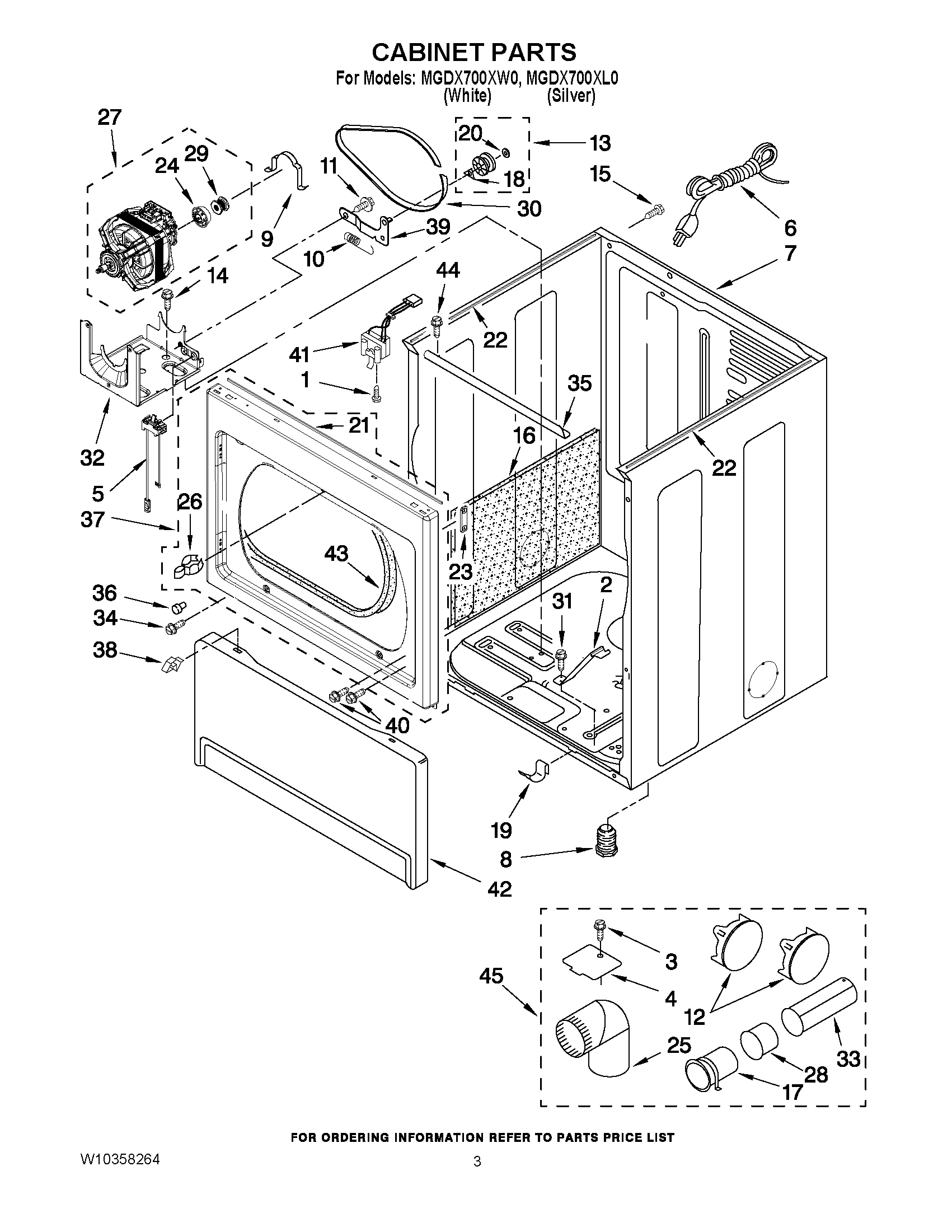

MGDX700XW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279818
NI	MAY 279810
1	SCREW
2	MAY 8529757
3	MAY 488729
4	MAY 3394331
5	MAY W10246525
6	MAY 344020
7	MAY W10292891
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	ASSEMBLY, PULLEY
14	SCREW
15	MAY 8533971
16	MAY W10123956
17	PIPE, EXHAUST (MEDIUM)
18	WASHER, TRI RING
19	CLIP
20	MAY W10121334
21	SEAL, SPILL GUARD
22	SEAL, FOAM
23	PLUG, HINGE SCREW
23	PLUG, FRONT PANEL (SILVER)
24	MAY 3393657
25	MAY 49026
26	MAY 696144
27	MAY W10281085
28	MAY 8563750
29	MAY 3389729
30	MAY W10112954
31	Screw
32	MAY W10242878
33	PIPE, EXHAUST (LONG)
34	SCREW
35	BRACKET, CABINET
36	BUMPER
37	PANEL, FRONT (WHITE)
37	MAY W10115468
38	RETAINER
39	MAY 3388674
40	SCREW
41	Switch, Door
42	Toe Panel (Includes Item. 2) (White)
42	TOE, PANEL (INCLUDES ITEM. 36) (SILVER)
43	MAY 3387242
44	SCREW
