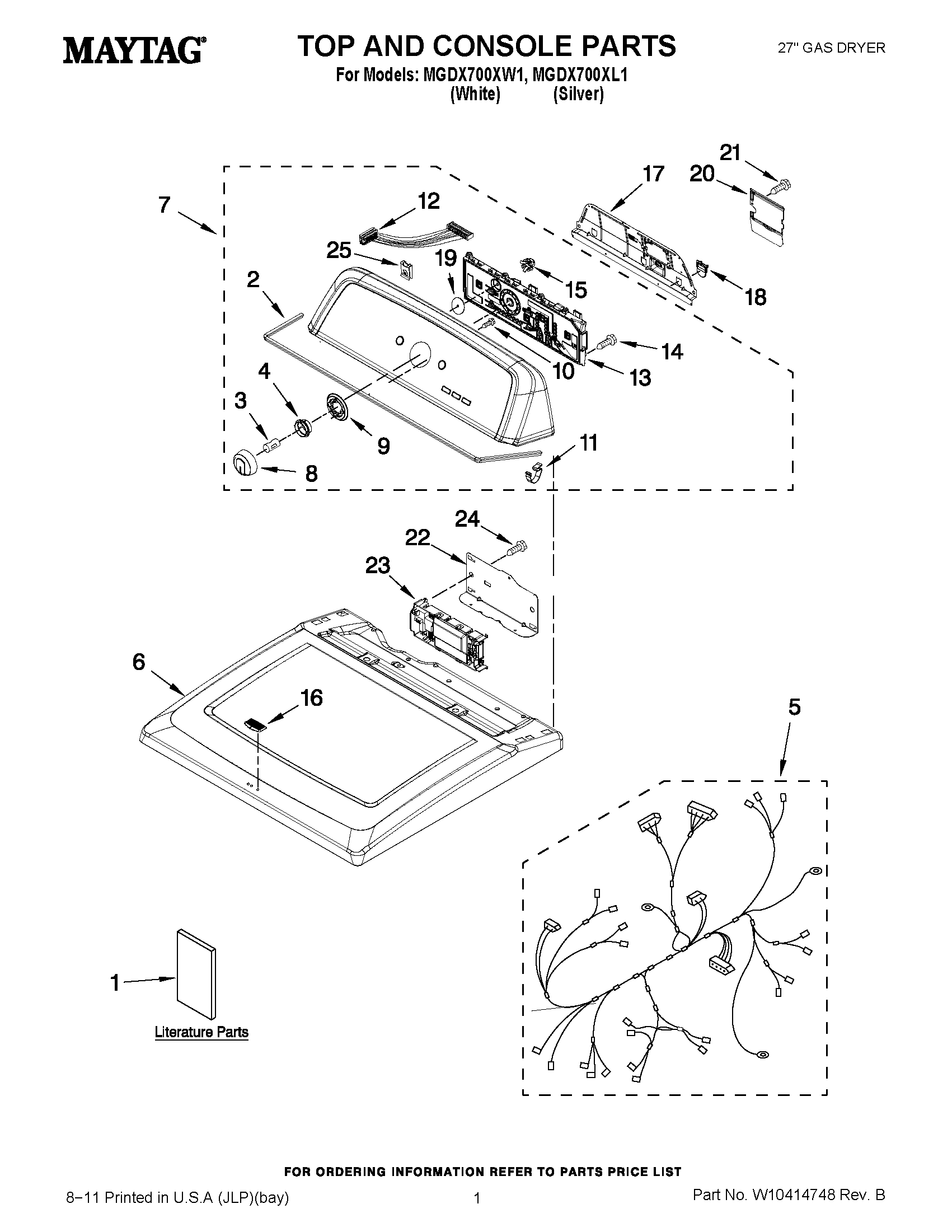

MGDX700XW1 01 – TOP AND CONSOLE PARTS
Written by
in
MGDX700XW1 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
INSTRUCTION INSTALLATION
1
MAY W10097036
1
MAY W10096989
2
MAY W10280079
3
CLIP, SPRING
4
MAY W10326923
5
MAIN HARNESS
6
TOP (SILVER)
6
MAY W10268730
7
MAY W10293248
7
MAY W10293249
8
MAY W10251381
8
KNOB, CONTROL (CHROME)
9
MAY W10305134
10
SCREW
11
MAY 8312709
12
HARNESS, USER INTERFACE
13
USER INTERFACE ASSEMBLY
14
MAY W10219342
15
TENSIONER, FASCIA
16
MAY W10323735
17
MAY W10096969
18
PLUG, UPPER REAR PANEL
19
SEAL, USER INTERFACE
20
MAY W10338363
21
Screw, 8-18 x 3/8
22
MAY W10271580
23
CCU-CONTROL
24
MAY 342055
25
NUT, "U"
←
