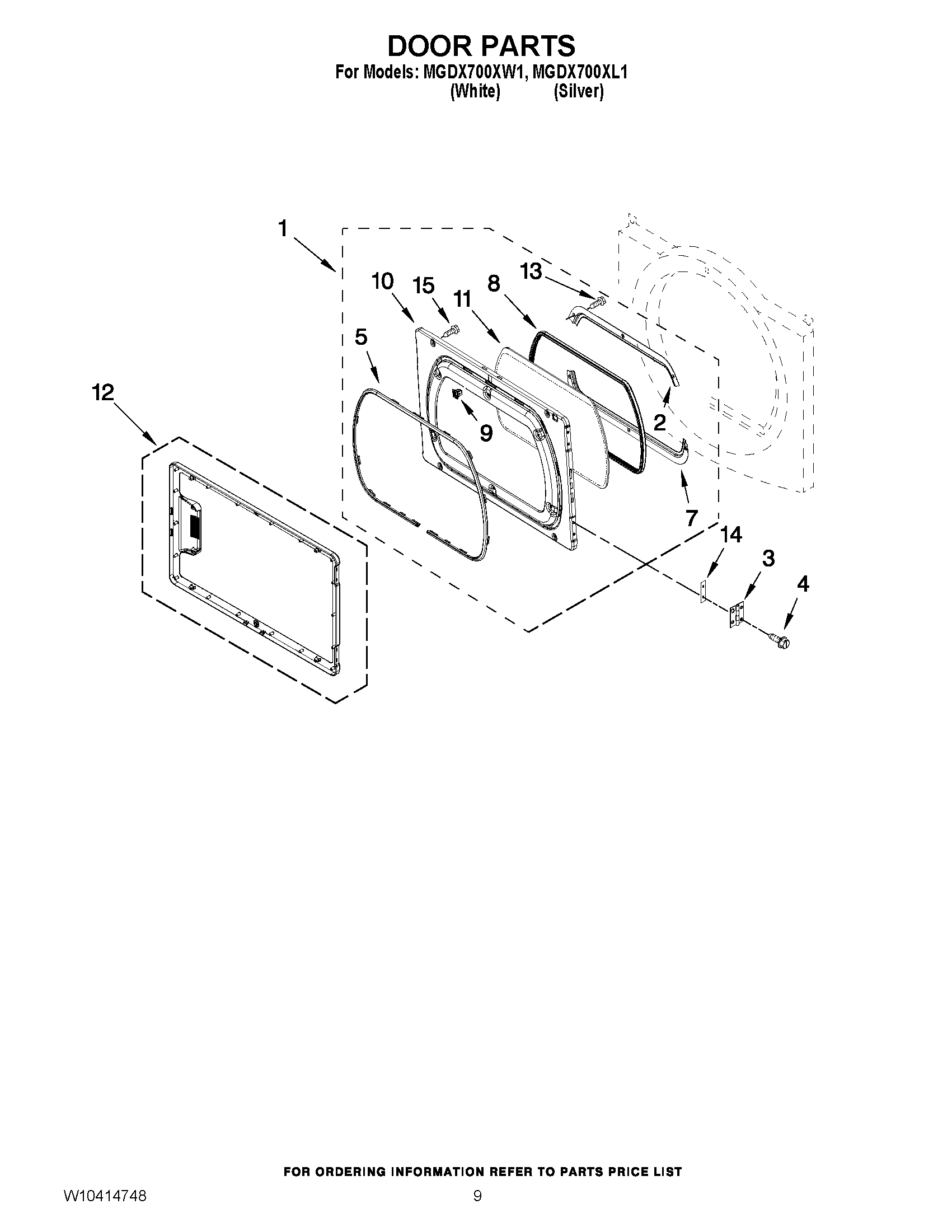

MGDX700XW1 05 – DOOR PARTS

MGDX700XW1 05 – DOOR PARTS

Written by

in

MGDX700XW1 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	RETAINER, GLASS UPPER
3	MAY W10330876
3	MAY W10330875
4	MAY 342055
5	SEAL, DOOR
7	RETAINER, GLASS LOWER
8	SEAL, WINDOW
9	Catch, Door
10	DOOR INNER
11	GLASS, DOOR
12	OUTER DOOR ASSEMBLY (SILVER)
12	MAY W10284127
13	Screw, 10-16 x 1/2
14	MAY 3390902
15	SCREW
