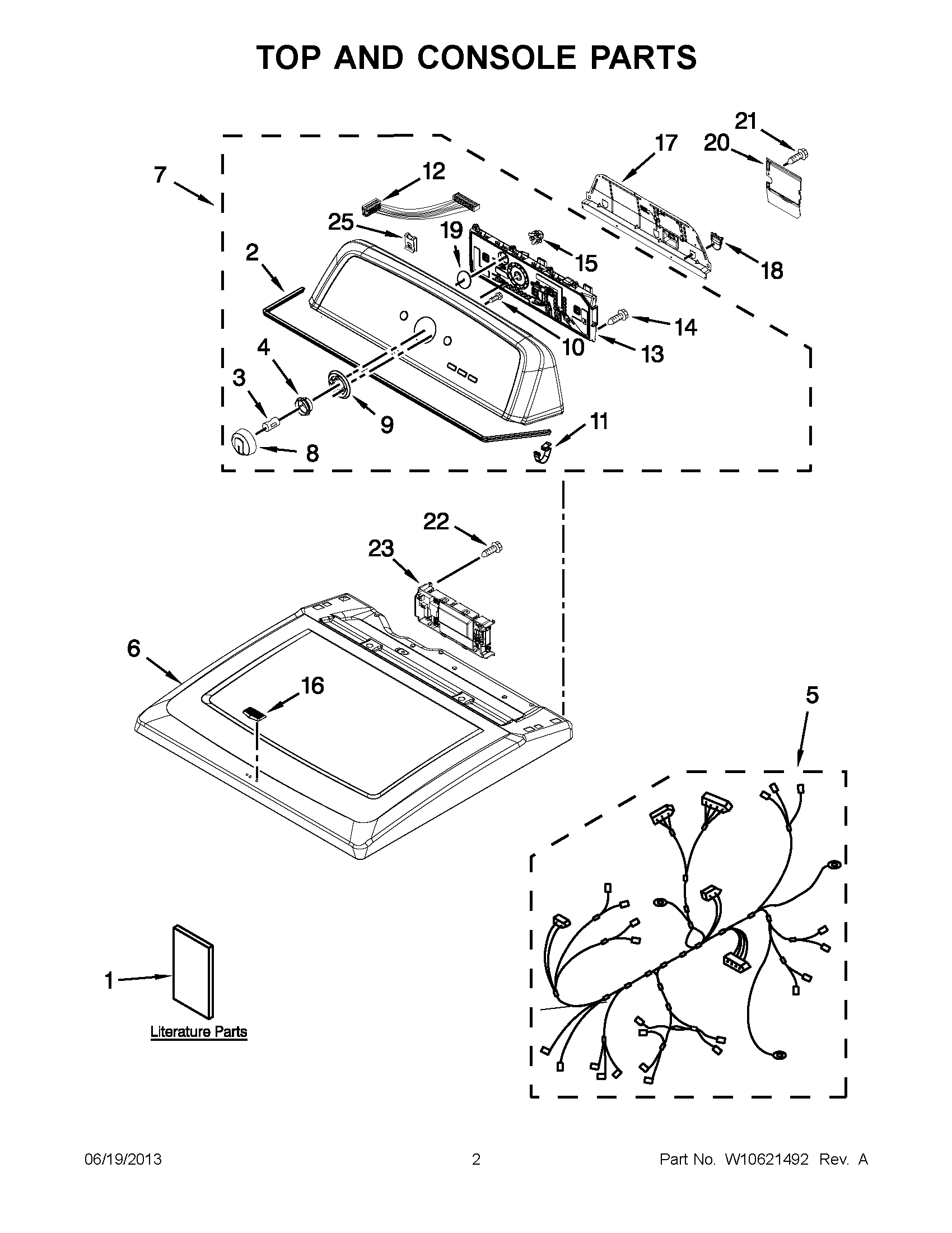

MGDX700XW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10096989
1MAY W10287249
1MAY W10417013
1MAY W10514185
2MAY W10280079
3CLIP, SPRING
4MAY W10326923
5MAIN HARNESS
6TOP (SILVER)
6MAY W10268730
7MAY W10293248
7MAY W10293249
8MAY W10251381
8KNOB, CONTROL (CHROME)
9MAY W10305134
10SCREW
11MAY 8312709
12HARNESS, USER INTERFACE
13USER INTERFACE ASSEMBLY
14MAY W10219342
15TENSIONER, FASCIA
16MAY W10492808
17MAY W10550615
18PLUG, UPPER REAR PANEL
19SEAL, USER INTERFACE
20MAY W10338363
21Screw, 8-18 x 3/8
22MAY 3348629
23CCU-CONTROL
25NUT, "U"
