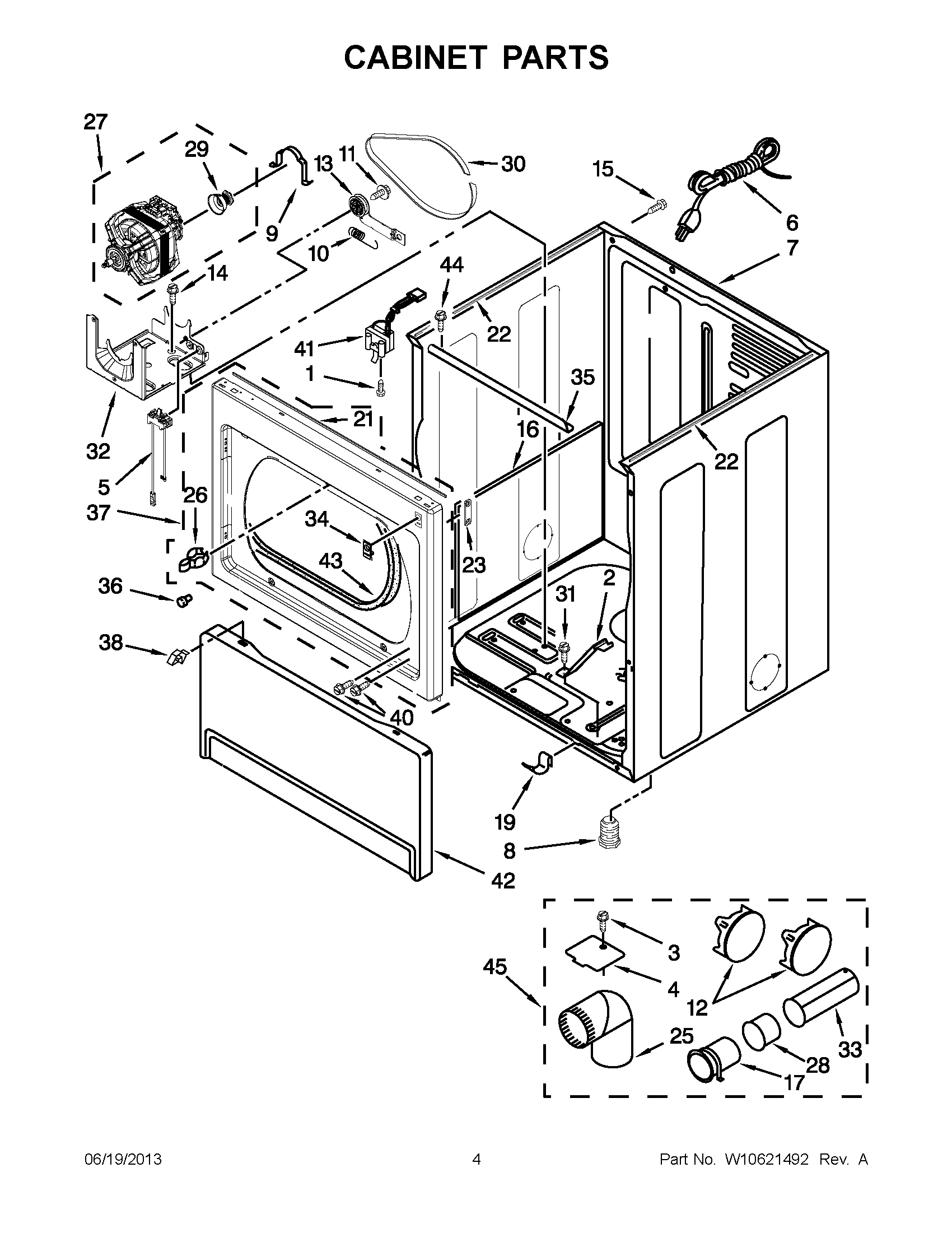

MGDX700XW2 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY 8529757
3	MAY 488729
4	MAY 3394331
5	MAY W10411936
6	MAY W10440460
7	MAY W10547698
7	MAY W10547697
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	ASSEMBLY, IDLER
14	SCREW
15	MAY 8533974
16	MAY W10123956
17	PIPE, EXHAUST (MEDIUM)
19	CLIP
21	SEAL, SPILL GUARD
22	SEAL, FOAM
23	PLUG, HINGE SCREW
23	PLUG, FRONT PANEL (SILVER)
25	MAY 49026
26	Strike, Door
27	ASSEMBLY, MOTOR
28	MAY 8563750
29	MAY W10460106
30	MAY W10112954
31	Screw
32	MAY W10242878
33	PIPE, EXHAUST (LONG)
34	COVER, STRIKE (WHITE)
34	COVER, STRIKE (SILVER)
35	BRACKET, CABINET
36	BUMPER
37	MAY W10362984
37	MAY W10362983
38	RETAINER
40	SCREW
41	Switch, Door
42	Toe Panel (Includes Item. 2) (White)
42	TOE, PANEL (INCLUDES ITEM. 36) (SILVER)
43	MAY 3387242
44	SCREW
45	MAY W10470674
