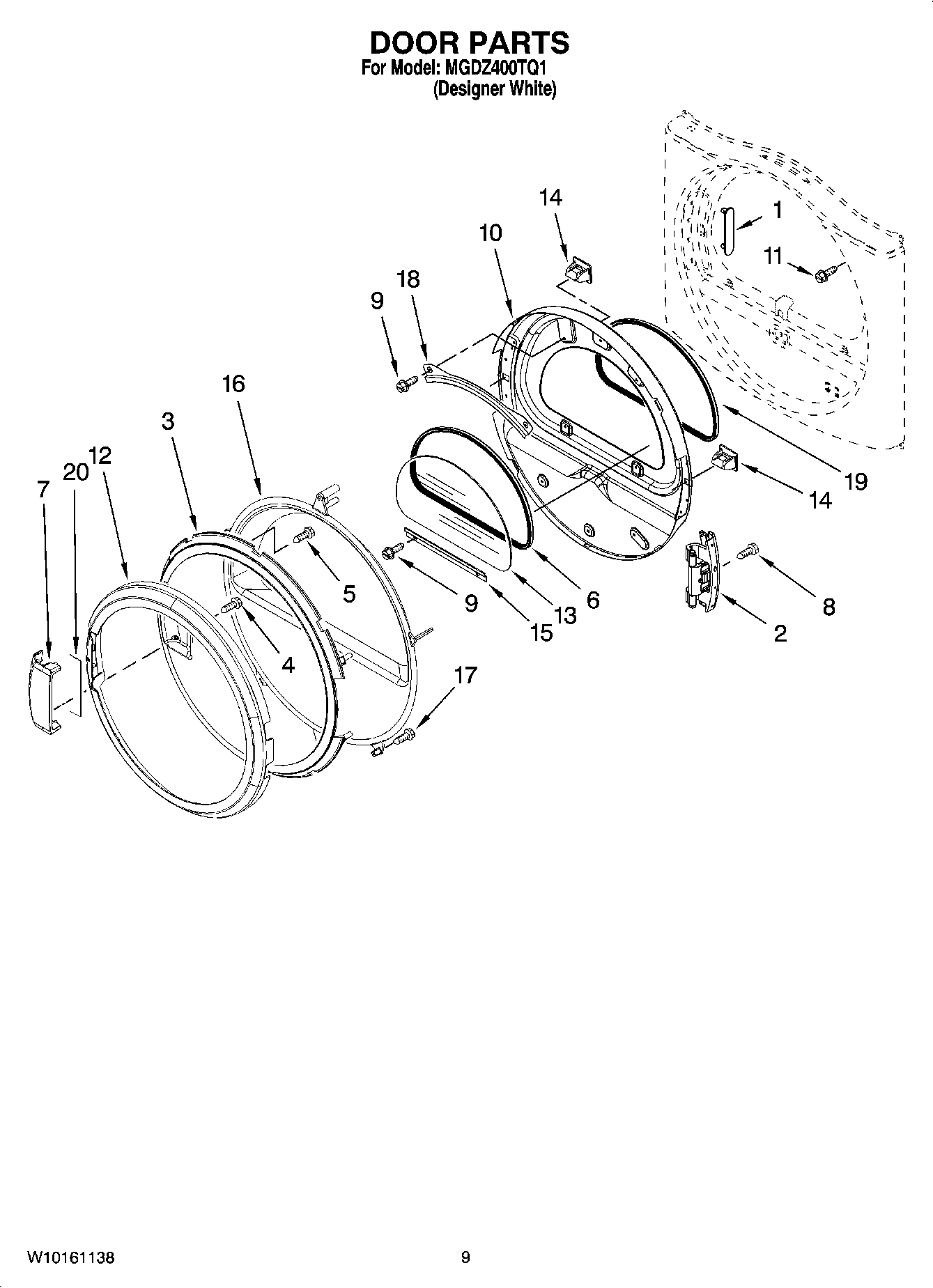

MGDZ400TQ1 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	MAY 8563738
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	MAY 8565119
2	DOOR HINGE ASSEMBLY
3	Door, Screen Intermediate Assy.
4	Screw
5	MAY 3400618
6	MAY 8579663
7	HANDLE, DOOR (INCLUDES ILLUS.19.)
8	Screw, 10-32 x 3/8
9	Screw, 10-16 x 1/2
10	Door Assembly (Inner) (Includes Illus. 1 & 14 )
11	MAY 355515
12	Door, Outer Ring
13	MAY 8565117
14	Catch, Door
15	MAY 8519354
16	MAY 8565114
17	MAY 8534022
18	MAY 8519356
20	MAY W10112927
