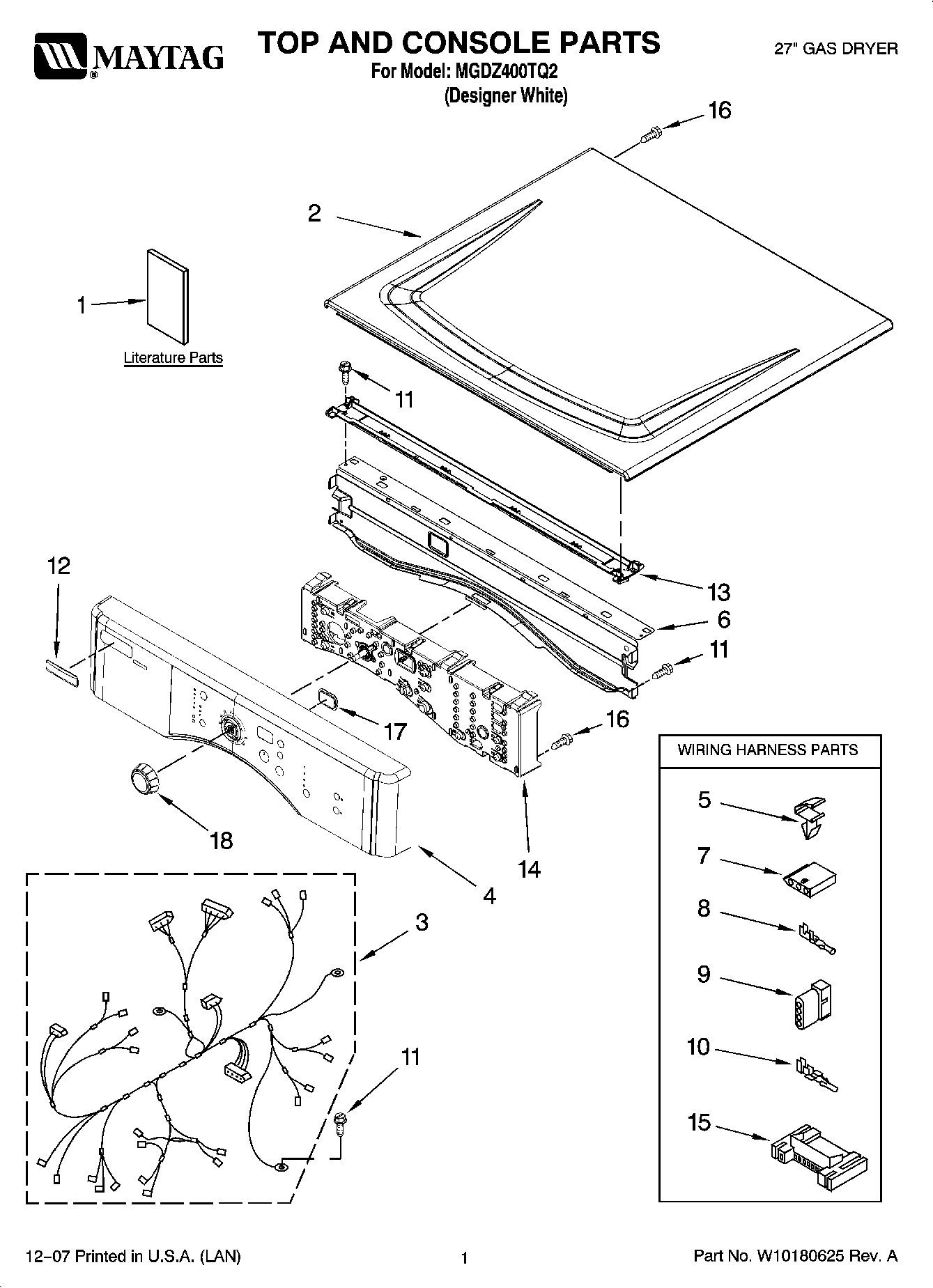

MGDZ400TQ2 01 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	MAY W10117403
1	MAY W10112943
1	MAY W10133923
2	Top
3	MAY W10110973
4	Panel, Console (Includes Illus. 15.)
5	CLIP, HARNESS
6	MAY 8565237
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	MAY W10112569
13	MAY 8574968
14	MAY W10117416
15	CONNECTOR (MOTOR)
16	MAY 3400238
17	MAY W10117387
18	Knob, Assembly
