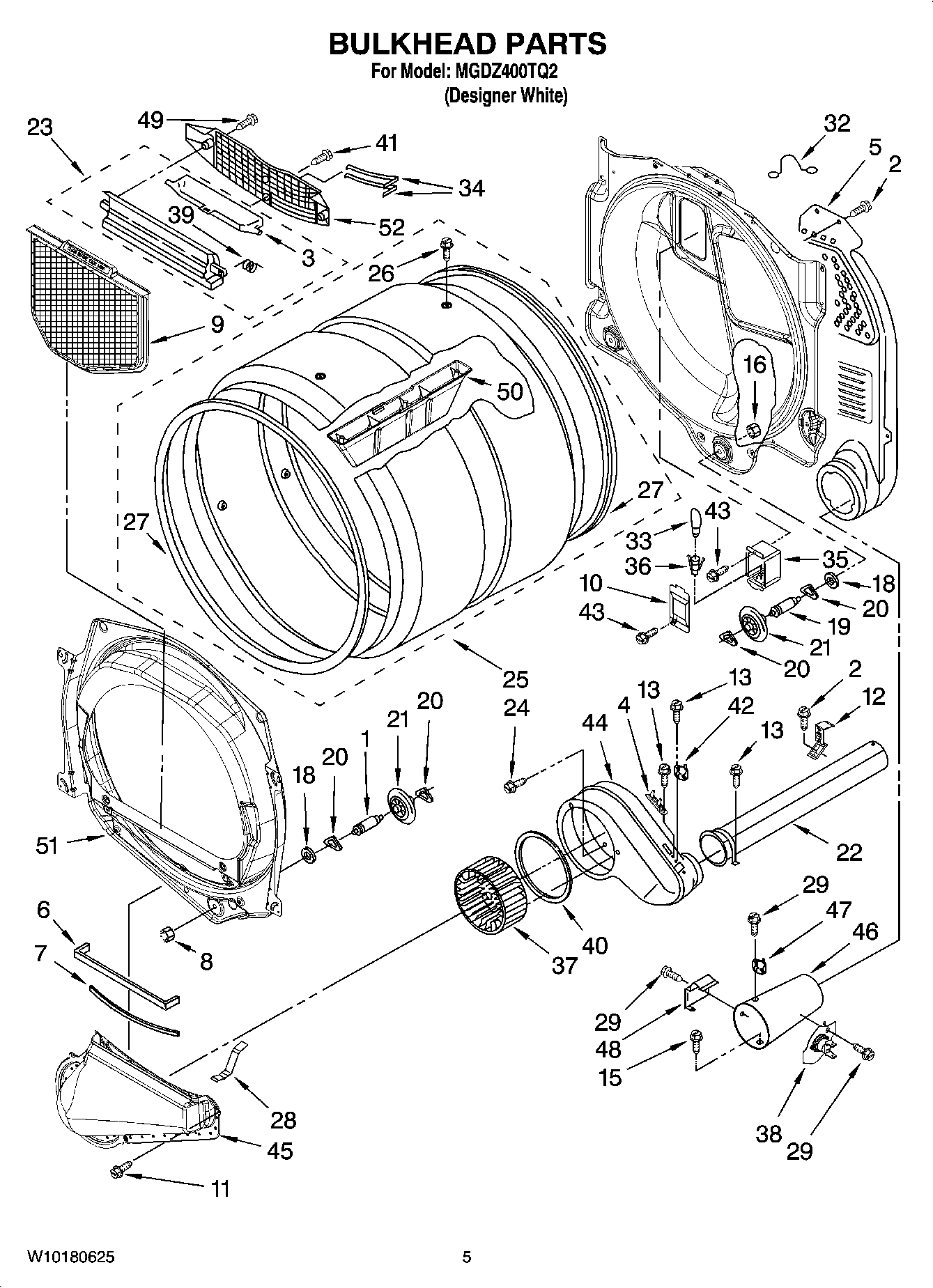

MGDZ400TQ2 03 – BULKHEAD PARTS
Written by
in
MGDZ400TQ2 03 – BULKHEAD PARTS
Products
Position
Product
1
MAY 8575324
2
SCREW
3
MAY W10153413
4
Fuse, Thermal (91 C)
5
MAY 3394346
6
MAY 697813
7
MAY 697814
8
NUT, HEX
9
MAY W10049370
10
MAY 3402841
11
MAY 359625
12
CLIP, EXHAUST
13
MAY 8533971
15
Screw
16
NUT, HEX (LEFT HAND THREAD)
17
MAY W10080170
18
WASHER
19
MAY 8575325
20
WASHER, TRI RING
21
MAY 8536973
22
MAY 8563728
23
Housing, Outlet
24
Screw
25
MAY W10153420
26
MAY W10109200
27
MAY 697694
28
CLIP-SPRING
29
SCREW,8-18 X 3/8
32
WIRE JUMPER
33
MAY 3406124
34
SENSOR, ELECTRODE
35
MAY 8578825
36
MAY W10136369
37
MAY 697772
38
CUT-OFF, THERMAL
39
Spring, Lint Screen Door
40
SEAL, PLATE COVER
41
Screw, 8-18 x 1/2
42
THERMISTOR
43
MAY 487909
44
MAY 8544362
45
Lint Duct Assembly
46
MAY 8573824
47
MAY 8573028
48
MAY 338906
49
SCREW
50
MAY W10153409
51
MAY 8565061
52
MAY W10153412
←
