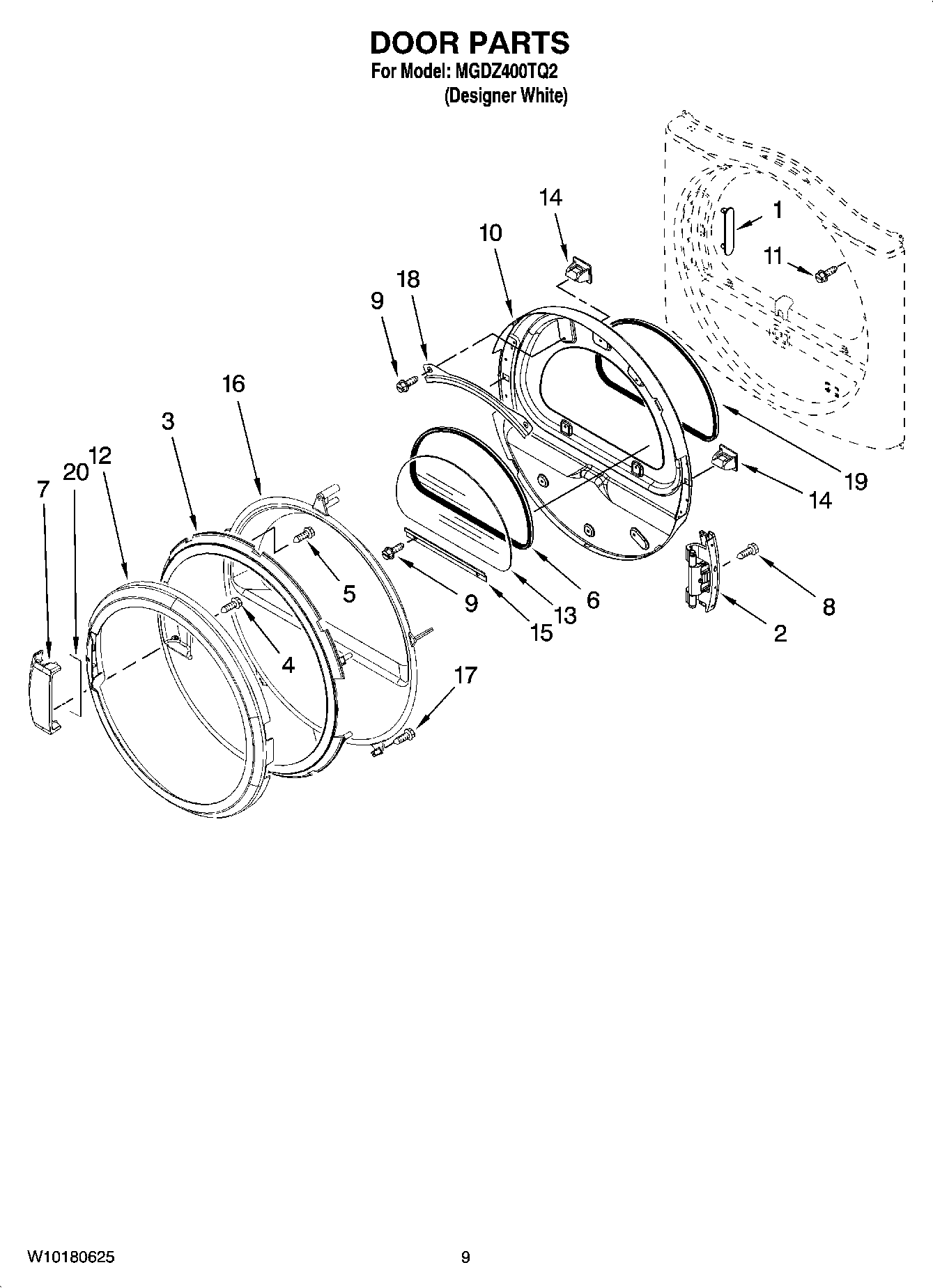

MGDZ400TQ2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, BULK (1 QT. WHITE (UNCUT))
	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
	ACCESSORY PARTS, KIT, HOLD DOWN
	ACCESSORY PARTS, KIT, DRYER REPAIR
	MAY 8563738
1	MAY 8565119
2	DOOR HINGE ASSEMBLY
3	Door, Screen Intermediate Assy.
4	Screw
5	MAY 3400618
6	MAY 8579663
7	HANDLE, DOOR (INCLUDES ILLUS.19.)
8	SCREW
9	Screw, 10-16 x 1/2
10	Door Assembly (Inner) (Includes Illus. 1 & 14 )
11	MAY 355515
12	Door, Outer Ring
13	MAY 8565117
14	Catch, Door
15	MAY 8519354
16	DOOR,INTERMEDIATE
17	MAY 8534022
18	MAY 8519356
20	MAY W10112927
