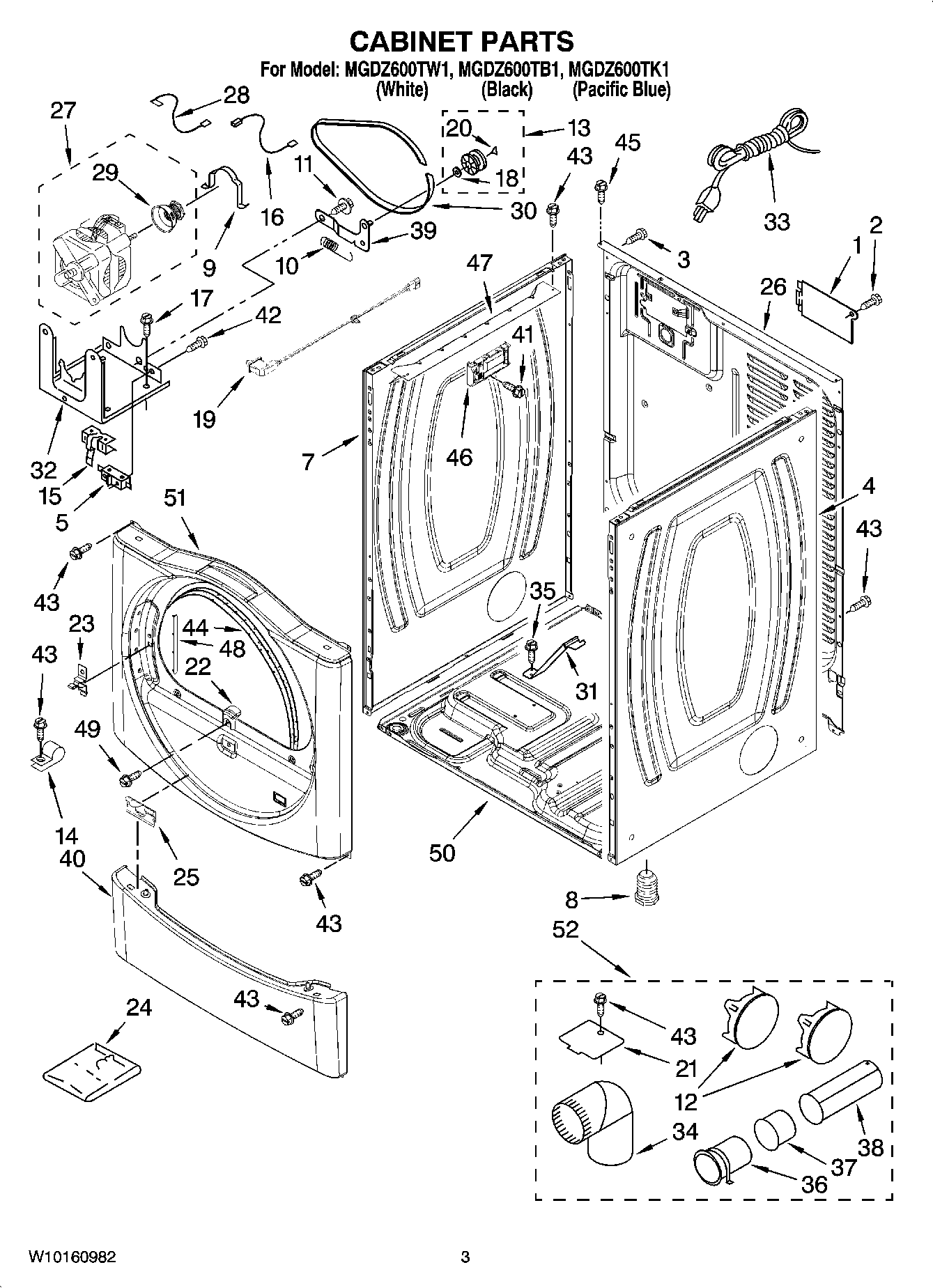

MGDZ600TK1 02 – CABINET PARTSadmin2025-04-26T11:33:16+00:00MGDZ600TK1 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8317340 |
| 2 | Screw, 8-18 x 3/8 |
| 3 | MAY 8533974 |
| 4 | MAY W10119027 |
| 4 | MAY W10112963 |
| 4 | MAY 8565048 |
| 5 | MAY 3394881 |
| 7 | MAY 8565054 |
| 7 | MAY W10119026 |
| 7 | MAY W10112962 |
| 8 | MAY 3392100 |
| 8 | MAY 279810 |
| 9 | MAY 660658 |
| 10 | MAY 3387374 |
| 11 | SCREW |
| 12 | MAY 697750 |
| 12 | MAY 3388309 |
| 12 | Plug, Multivent (Pacific Blue) |
| 13 | ASSEMBLY, PULLEY |
| 14 | MAY 3978776 |
| 15 | MAY 8066120 |
| 16 | MAY 3394081 |
| 17 | SCREW |
| 18 | MAY 233520 |
| 19 | MAY 8574875 |
| 20 | MAY W10121334 |
| 21 | MAY 8066115 |
| 22 | MAY 8565083 |
| 23 | STRIKE, DOOR |
| 24 | MAY 8572546 |
| 25 | MAY 8519459 |
| 26 | MAY 8565059 |
| 27 | Motor Assembly 60 HZ. |
| 28 | Wire, Jumper (Broken Belt Switch) |
| 29 | Pulley 60 HZ. |
| 30 | MAY W10112954 |
| 31 | MAY 8529757 |
| 32 | MAY 3387118 |
| 33 | MAY 3401401 |
| 34 | MAY 49026 |
| 35 | Screw |
| 36 | PIPE, EXHAUST (MEDIUM) |
| 37 | MAY 8563750 |
| 38 | PIPE, EXHAUST (LONG) |
| 39 | MAY 3388674 |
| 40 | MAY 8540621 |
| 40 | MAY W10112964 |
| 40 | MAY W10119028 |
| 41 | MAY 8533971 |
| 42 | Screw, 6-20 x 1-1/16 |
| 43 | SCREW |
| 44 | MAY 3387242 |
| 45 | SCREW, 10-16 X 1/2 |
| 46 | Control Board |
| 47 | Bracket, Control |
| 48 | Plug, Front Panel |
| 49 | SCREW |
| 50 | MAY 8565046 |
| 51 | MAY W10119029 |
| 51 | MAY W10117421 |
| 51 | Front Panel (Includes Illus. 44) (Black) |
| 52 | MAY 279818 |
| 52 | MAY 280102 |
| 52 | MAY 279820 |
