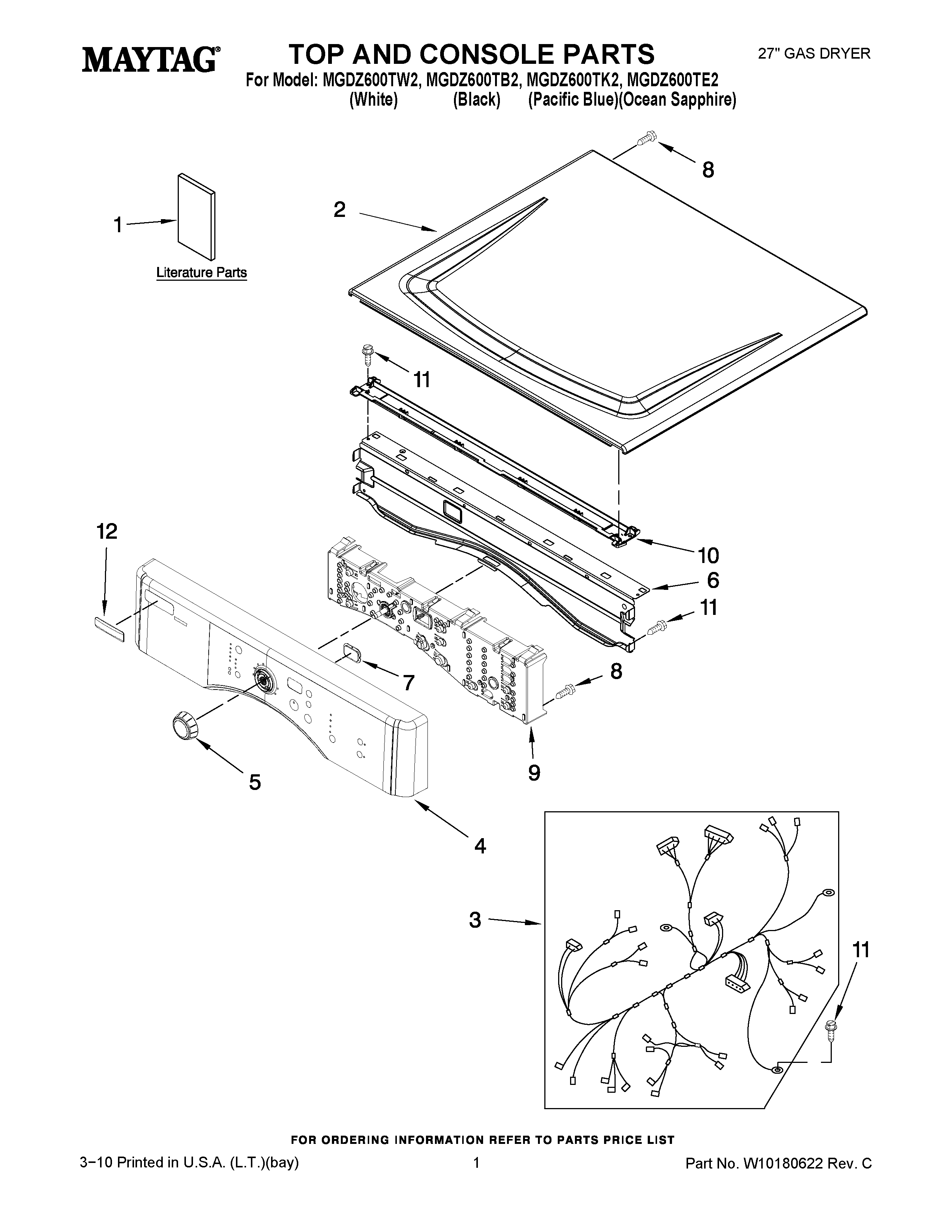

MGDZ600TK2 01 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	MAY W10261613
1	MAY W10260034
1	MAY W10133923
2	MAY W10174561
2	MAY W10140767
2	MAY W10129703
2	Top
3	MAY W10251443
4	Panel, Console (Includes Illus. 15.) (Black)
4	MAY W10119034
4	MAY W10174674
4	MAY W10117389
5	Knob, Assembly
6	MAY 8565237
7	MAY W10117387
8	MAY 3400238
9	MAY W10117417
10	CHANEL, WATER
11	SCREW
12	Badge
