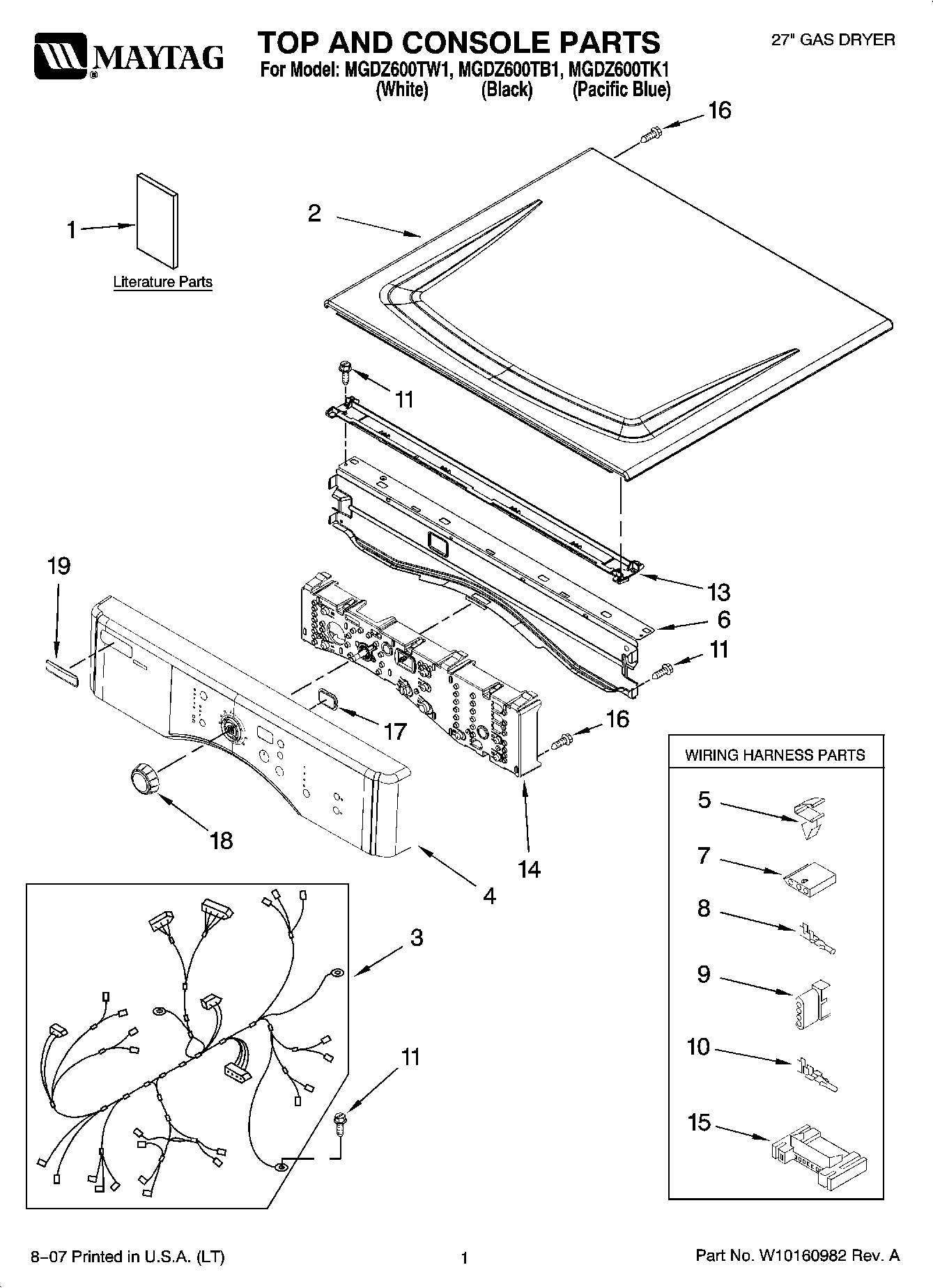

MGDZ600TW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10112943
1MAY W10133923
1MAY W10117403
2MAY W10129703
2MAY W10140767
2Top
3MAY W10110973
4Panel, Console (Includes Illus. 15.) (Black)
4MAY W10119034
4MAY W10117389
5CLIP, HARNESS
6MAY 8565237
7Connector Sensor
8Terminal
9MAY 3936144
10Terminal
11SCREW
13MAY 8574968
14MAY W10117417
15CONNECTOR (MOTOR)
16MAY 3400238
17MAY W10117387
18Knob, Assembly
19MAY W10112569
