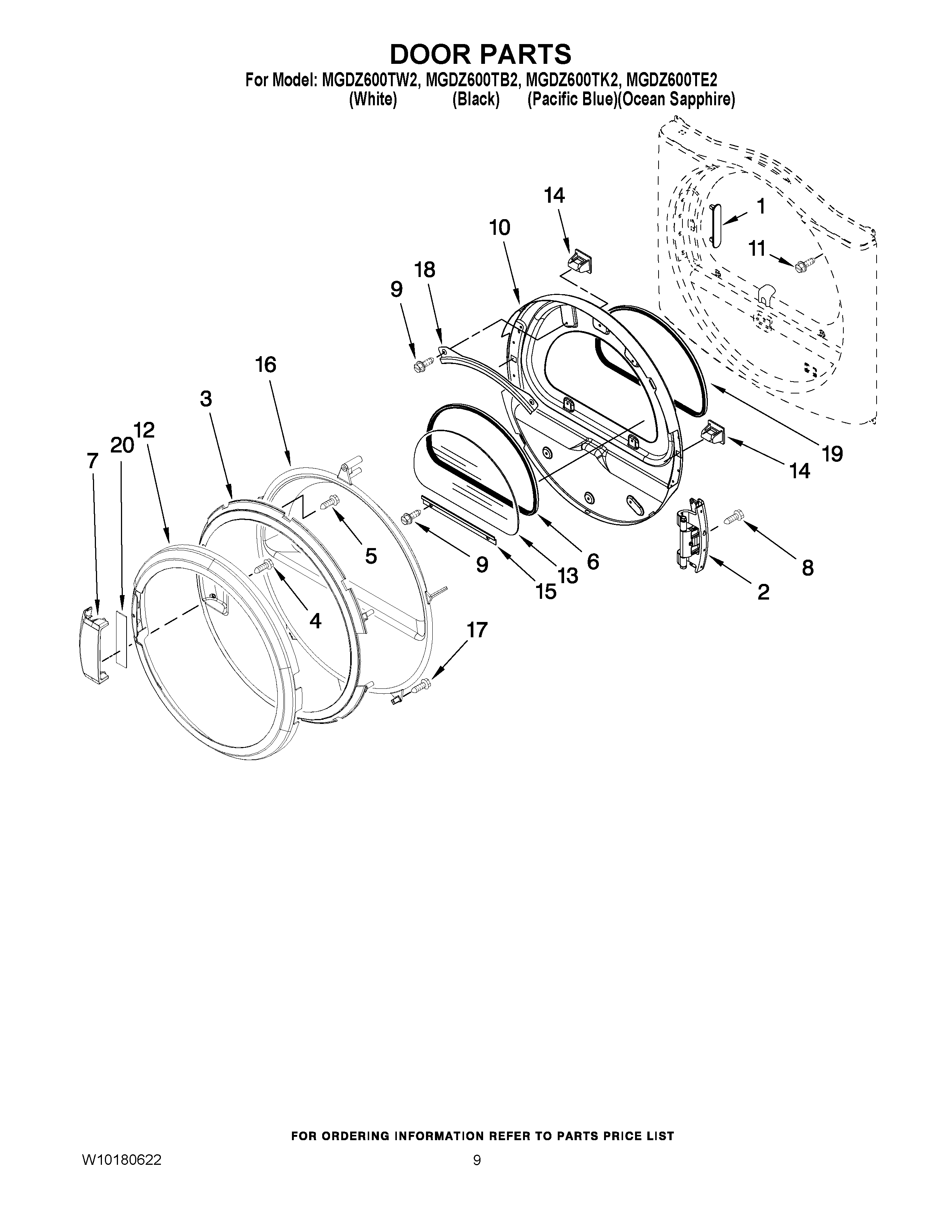

MGDZ600TW2 05 – DOOR PARTS

Products

Position	Product
1	LABEL, HINGE HOLE COVER (INNER DOOR)
2	DOOR HINGE ASSEMBLY
3	Door, Screen Intermediate Assy.
4	Screw
5	MAY 3400618
6	MAY 8579663
7	HANDLE, DOOR (INCLUDES ILLUS.19.)
8	SCREW
9	Screw, 10-16 x 1/2
10	DOOR ASSEMBLY (INNER) (INCLUDES, ITEM. 1 & 14 )
11	MAY 355515
12	MAY W10112917
13	MAY W10286878
14	Catch, Door
15	MAY 8519354
16	DOOR,INTERMEDIATE
17	MAY 8534022
18	MAY 8519356
19	LINER (NOT A SERVICEABLE PART)
20	MAY W10112927
