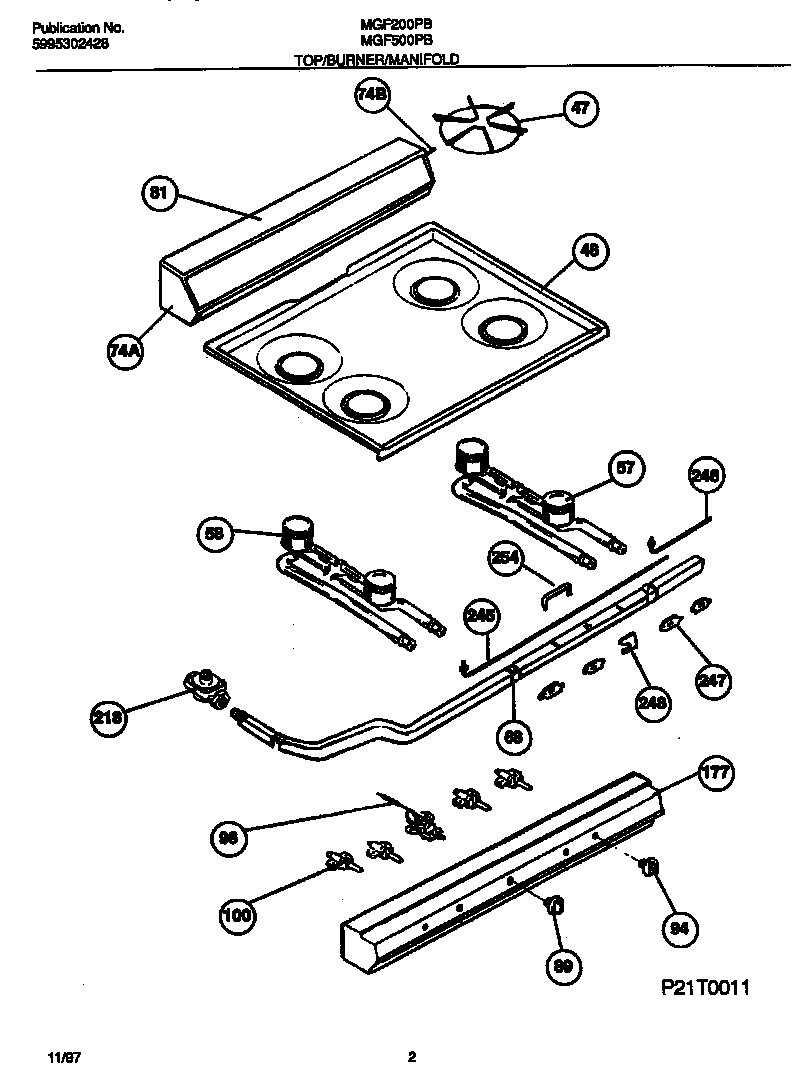

MGF200PBDB 02 – TOP/BURNER/MANIFOLD

MGF200PBDB 02 – TOP/BURNER/MANIFOLD

Products

PositionProduct
*23561WCI 5303285789
*23562WCI 5303285950
*23563WCI 5303285962
47WCI 5303285720
48TOP-MAIN-ALMD
57BURNER-TOP, FRONT
58BURNER-TOP, REAR
68WCI 5303285723
74WCI 5303285855
74WCI 5303285854
81BACKGUARD-SHELL-ALMD
89WCI 5303285724
94KNOB-TOP VALVE
96WCI 5303285787
100WCI 5303285727
177WCI 5303304889
2185308007974 Frigidaire Pressure Regulator
245SPARK-IGNITOR, LH
246SPARK-IGNITOR, RH
247SWITCH-IGNITOR, TOP BURNER
248SWITCH-IGNITOR, OVEN BURNER
254WCI 5303285777
