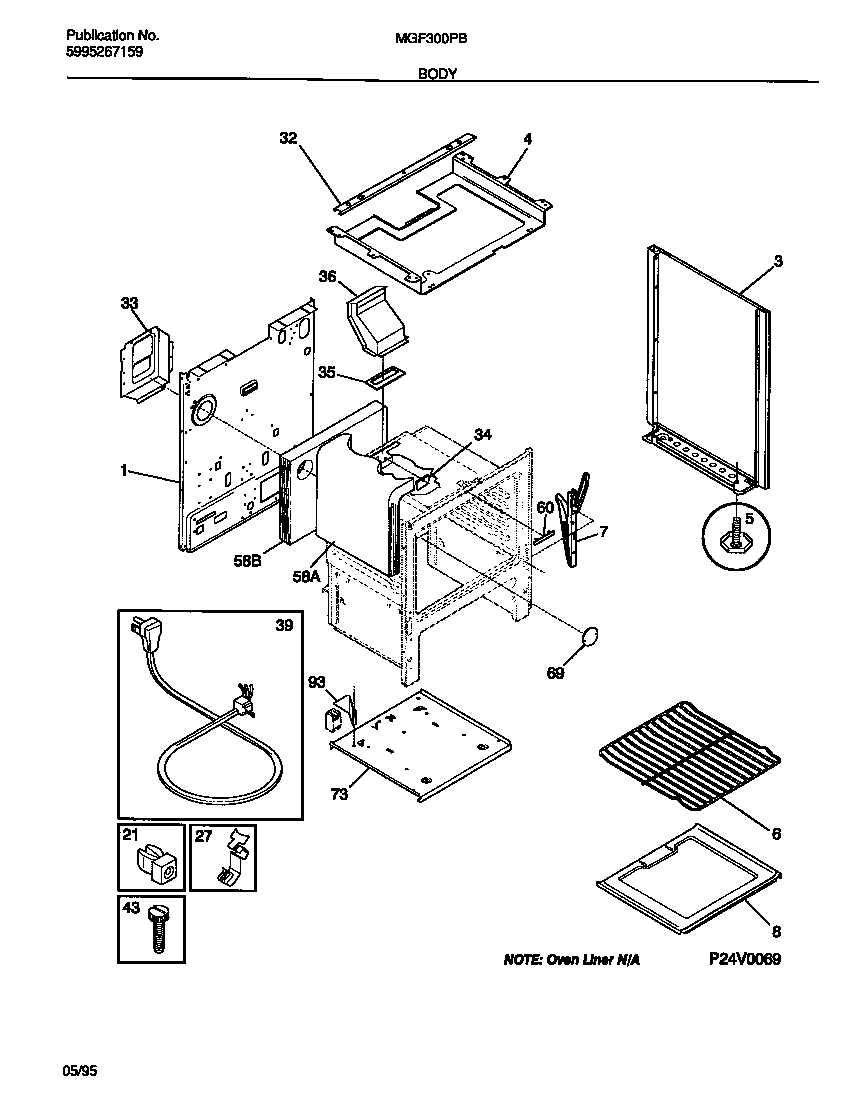

MGF300PBDC 04 – BODY

MGF300PBDC 04 – BODY

Written by

in

MGF300PBDC 04 – BODY

Products

PositionProduct
*08403WCI 5303281584
*08402WCI 3131192
1WCI 316029410
3WCI 316081006
3WCI 316081007
4WCI 316067204
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5BWCI 3934058
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7B3203010 Frigidaire Clip
7AHINGE-OVEN DOOR,ASSEMBLY
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
43316282700 Frigidaire Oven Screw
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BASE-BROIL
93WCI 316055501
