MGF300PBDF 04 – BODY

MGF300PBDF 04 – BODY

Written by

in

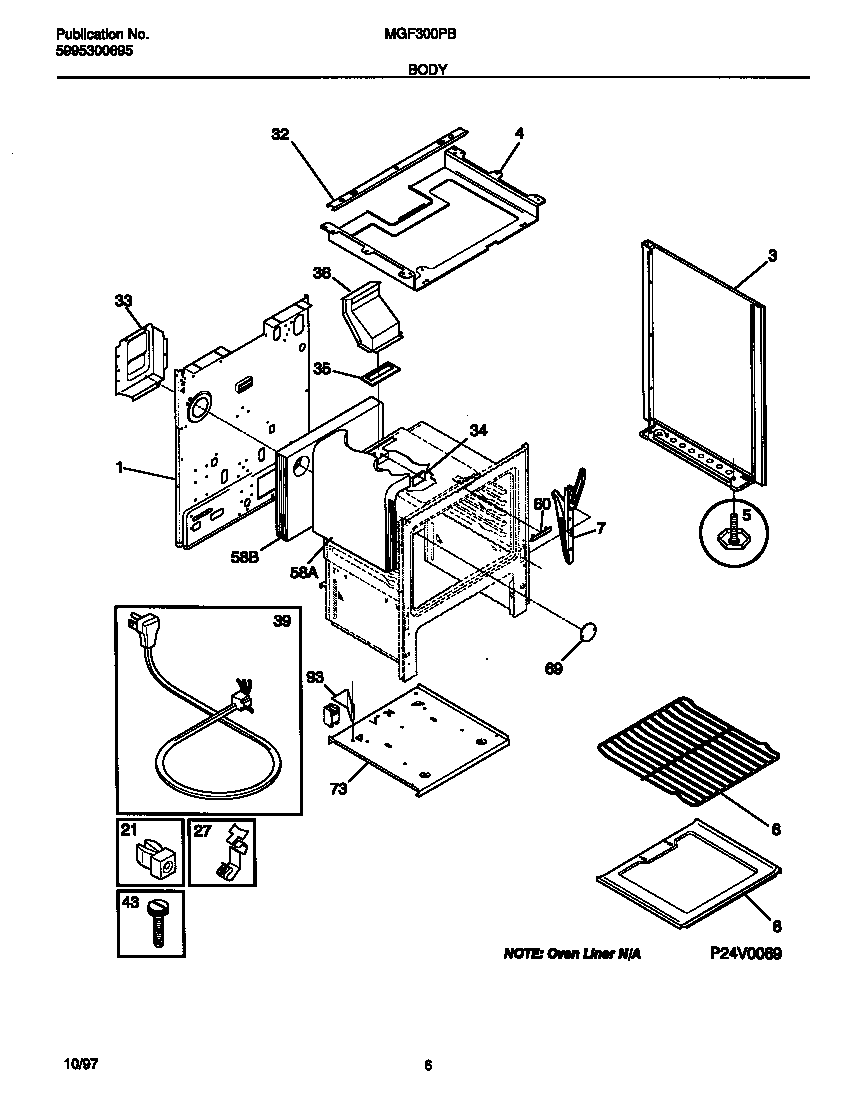

MGF300PBDF 04 – BODY

Products

PositionProduct
*75362WCI 3131570
*75363WCI 3131192
*75365WCI 316073400
*75364Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081030
3PANEL-BODYSIDE,ALMOND ,LH
4WCI 316067206
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5BWCI 3934058
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
73203010 Frigidaire Clip
7WCI 316007006
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32ACHANNEL-BURNER BOX
32B5303289684 Frigidaire FASTENER
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
43316282700 Frigidaire Oven Screw
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BASE-BROIL
93WCI 316055500
