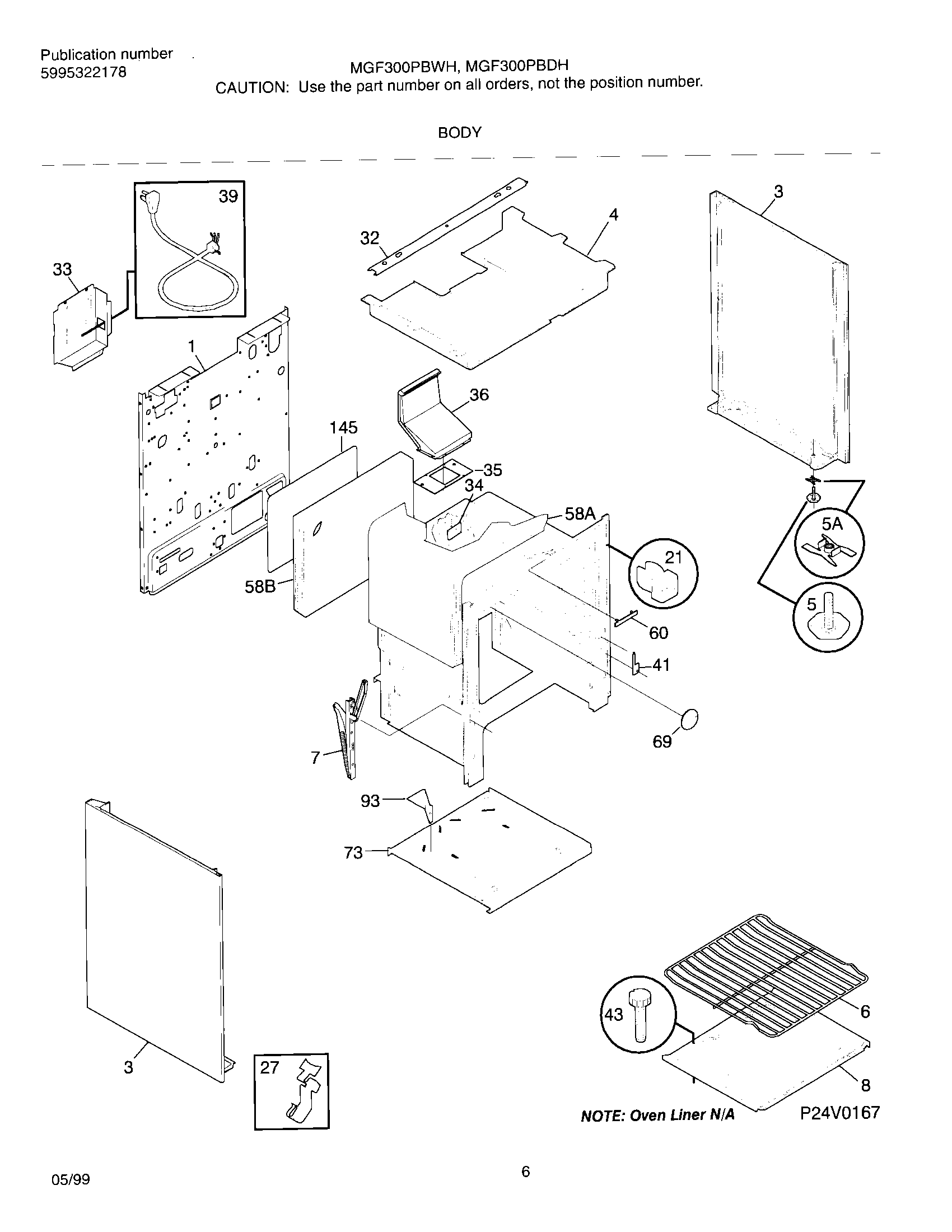

MGF300PBDH 07 – BODY

Products

Position	Product
	WCI 3131570
	Screw,cup pt ,8-18 x 0.375 ,chrome
	WCI 316073400
	WCI 3131192
1	WCI 316029412
3	PANEL-BODYSIDE,ALMOND ,LH
3	WCI 316081030
4	WCI 316067206
5	WCI 3934058
5	316116000 Frigidaire Screw
5	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	WCI 316007007
7	3203010 Frigidaire Clip
8	BTTM-OVEN
8	316064600 Frigidaire Oven Support
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
32	5303289684 Frigidaire FASTENER
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	316204402 Frigidaire Oven Flue
39	5304515659 Frigidaire Oven Power Cord
43	316282700 Frigidaire Oven Screw
58A	INSULATION, OVEN WRAPPER
58B	INSUL – OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
69	3051218 Frigidaire Oven Plate
73	BASE-BROIL
93	WCI 316055500
