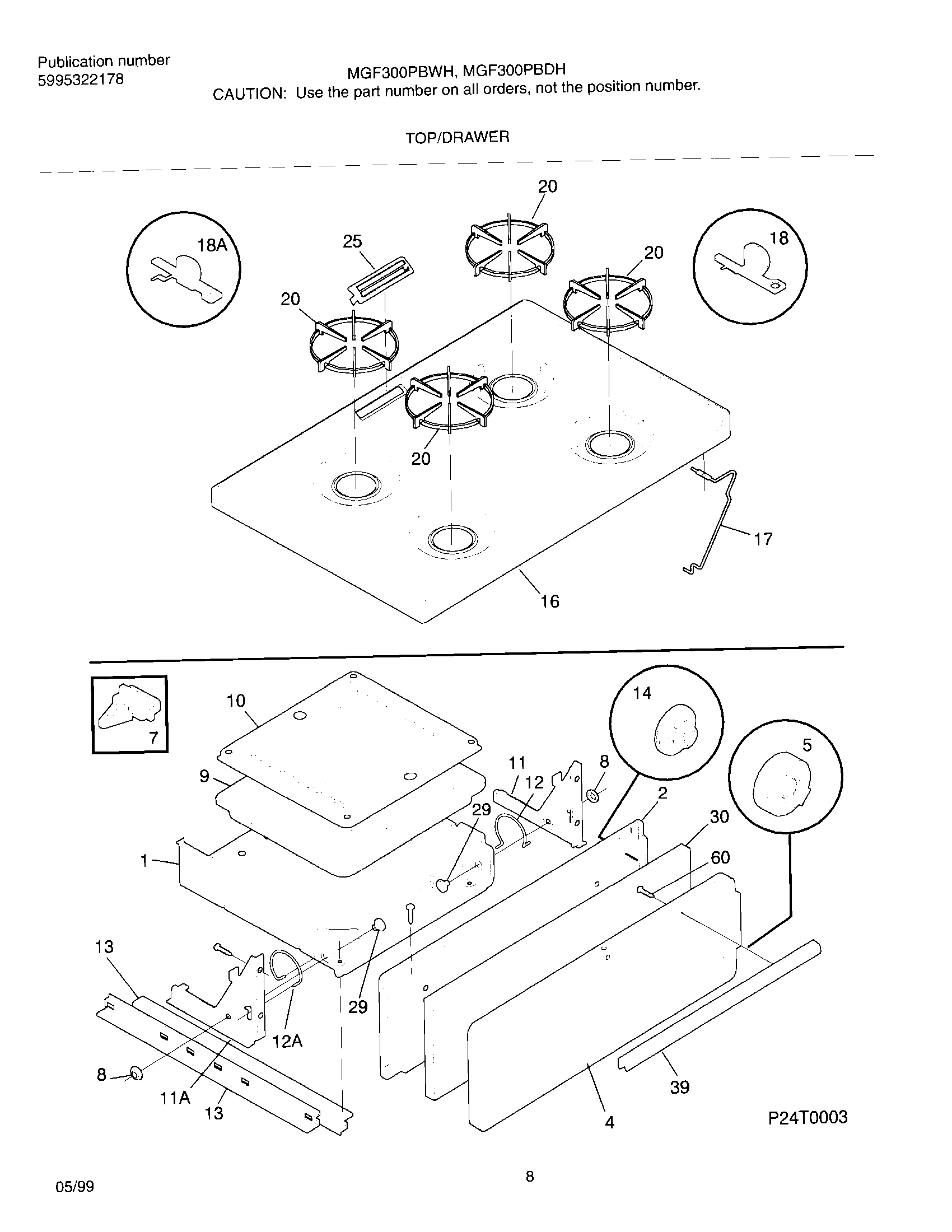

MGF300PBDH 09 – TOP/DRAWER

MGF300PBDH 09 – TOP/DRAWER

Written by

in

MGF300PBDH 09 – TOP/DRAWER

Products

PositionProduct
Screw,cup pt ,8-18 x 0.375 ,chrome
316021105 Frigidaire Oven Screw
WCI 5303280311
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
4WCI 316056206
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11ABRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16MAIN TOP-ALMD
16WCI 3206214
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20316055800 Frigidaire Oven Grate
25WCI 3131190
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, BRUSHED CHROME
60316089500 Frigidaire Oven Screw
