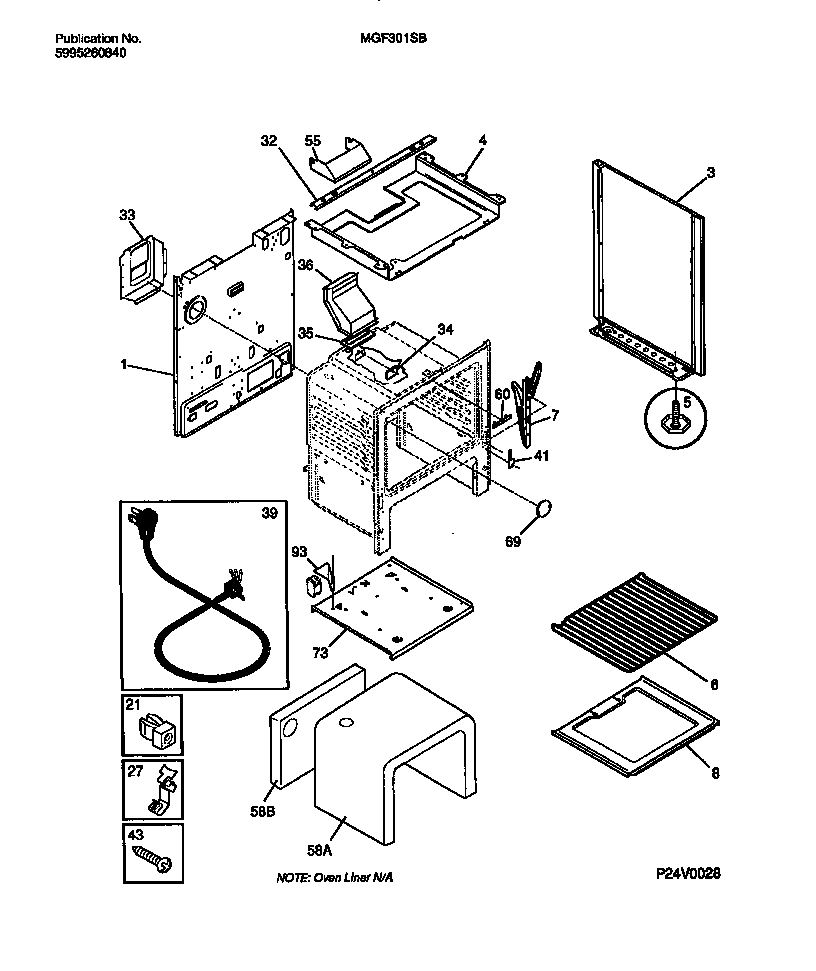

MGF301SBDA 04 – BODY

MGF301SBDA 04 – BODY

Written by

in

MGF301SBDA 04 – BODY

Products

PositionProduct
*85367TOUCH, UP PAINT, ALMOND (NI)
*85362WCI 3131192
1WCI 316029410
3AWCI 5303269545
3WCI 5303269543
4WCI 318067204
5SCREW-LEVELING
5AWCI 3934058
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8AWCI 316164600
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
55COVER-FLUE
55ASHIELD-FLUE, (NON-ILLUSTRATED)
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
60WCI 5303045372
693051218 Frigidaire Oven Plate
73BASE-BROIL
93WCI 316055501
