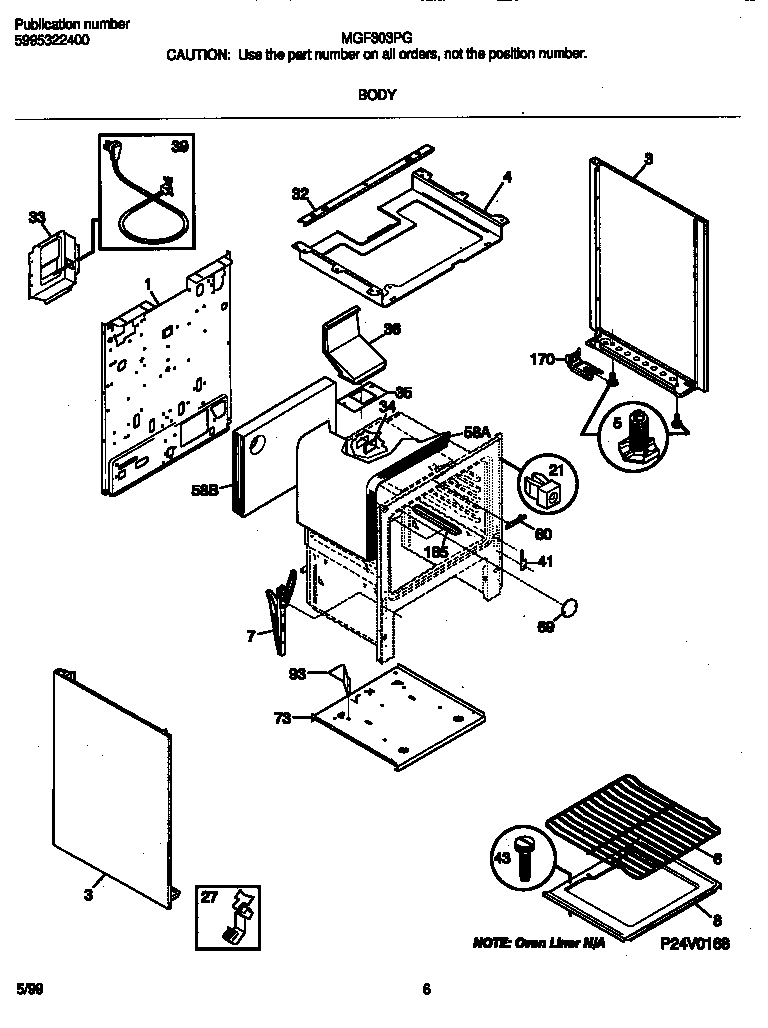

MGF303PGDD 04 – BODY

MGF303PGDD 04 – BODY

Written by

in

MGF303PGDD 04 – BODY

Products

PositionProduct
*96334SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*96331WCI 316073400
*963335303289684 Frigidaire FASTENER
*96329WCI 3131192
*96332316064600 Frigidaire Oven Support
*96330Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3AWCI 316081036
3BWCI 316081037
4WCI 316067206
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007007
8BTTM-OVEN
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73WCI 316109902
93WCI 316110000
170B316116000 Frigidaire Screw
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
185316112900 Frigidaire SHIELD
