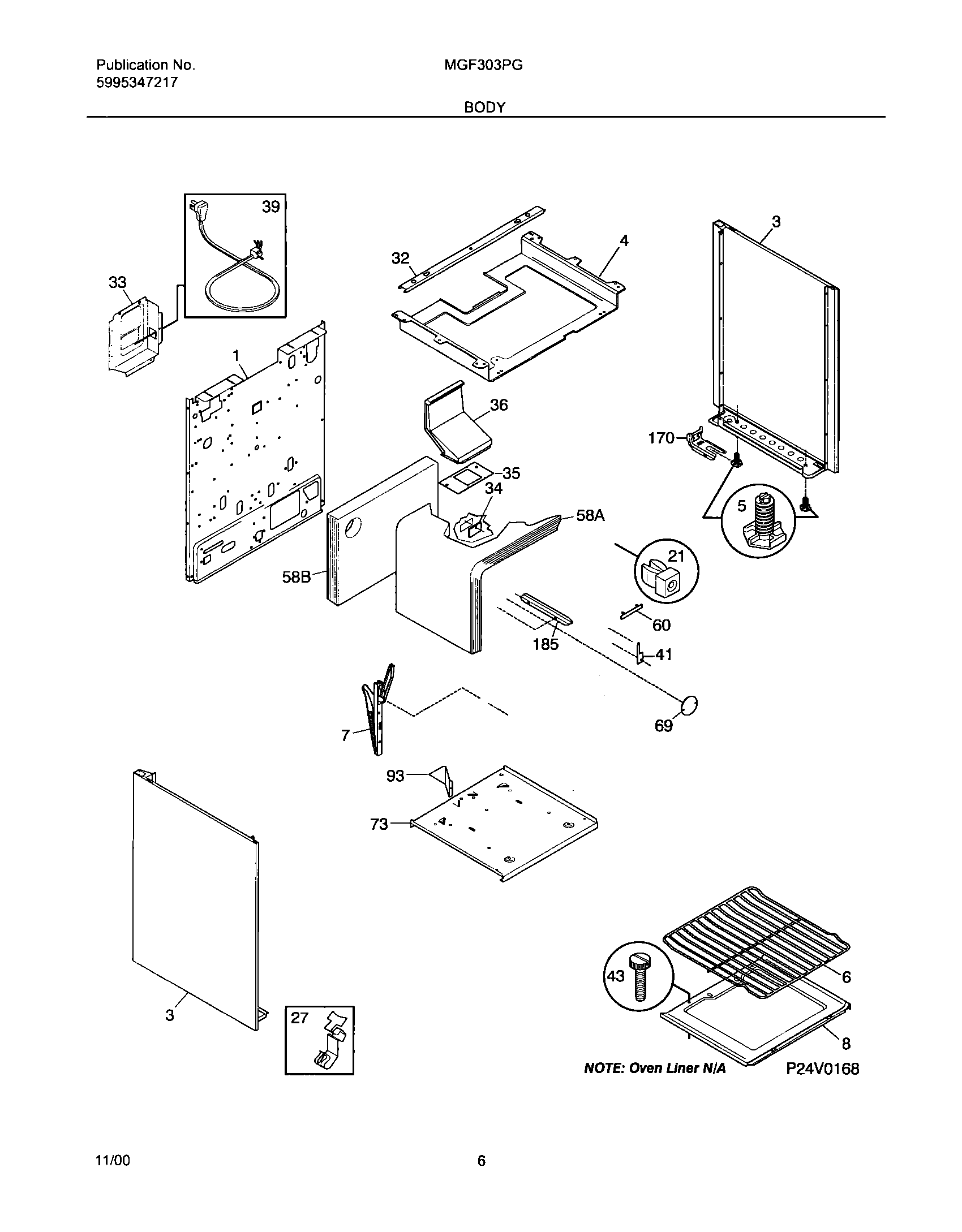

MGF303PGWG 09 – BODY

MGF303PGWG 09 – BODY

Written by

in

MGF303PGWG 09 – BODY

Products

PositionProduct
NIWCI 316073400
NIWCI 5303280311
NIWCI 3131192
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316064600 Frigidaire Oven Support
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI5303285179 Frigidaire Oven Door Screw
NI5303289684 Frigidaire FASTENER
1WCI 316029416
3WCI 316081034
3WCI 316081035
4WCI 316067206
5WCI 316129200
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 316107501
33WCI 316055600
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
693051218 Frigidaire Oven Plate
73WCI 316109902
93WCI 316110000
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
185316112900 Frigidaire SHIELD
