MGF311SBDB 05 – BODY

MGF311SBDB 05 – BODY

Written by

in

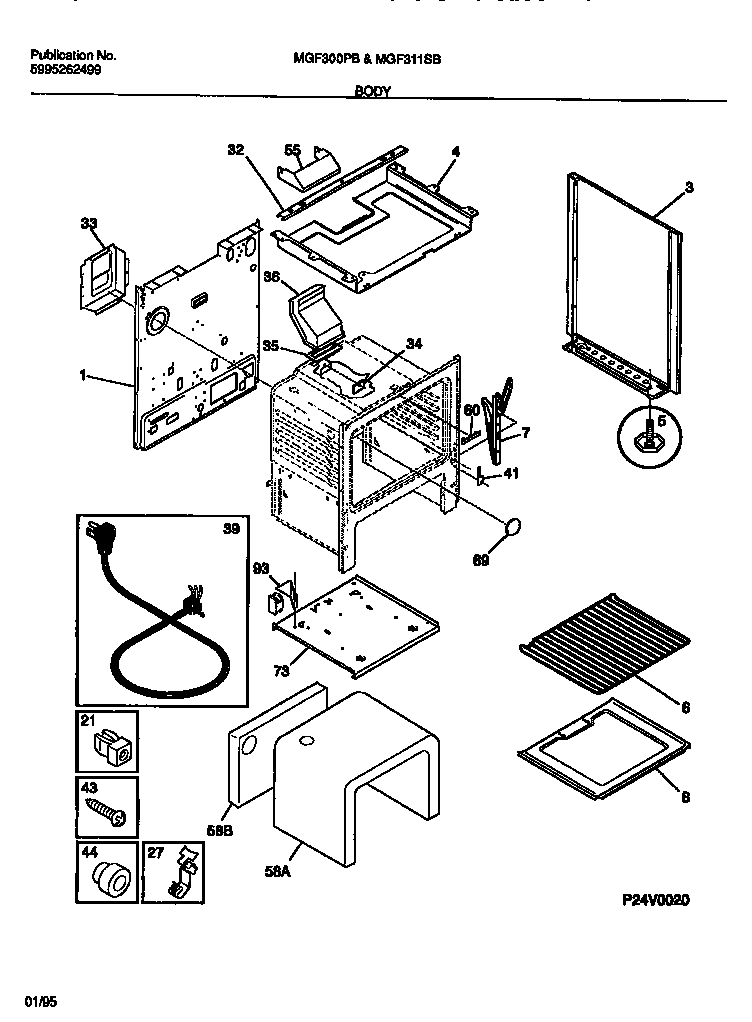

MGF311SBDB 05 – BODY

Products

PositionProduct
1WCI 316029410
3WCI 316081006
3AWCI 316081007
4WCI 316067204
5SCREW-LEVELING
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5AWCI 3934058
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BASE-BROIL
93WCI 316055501
