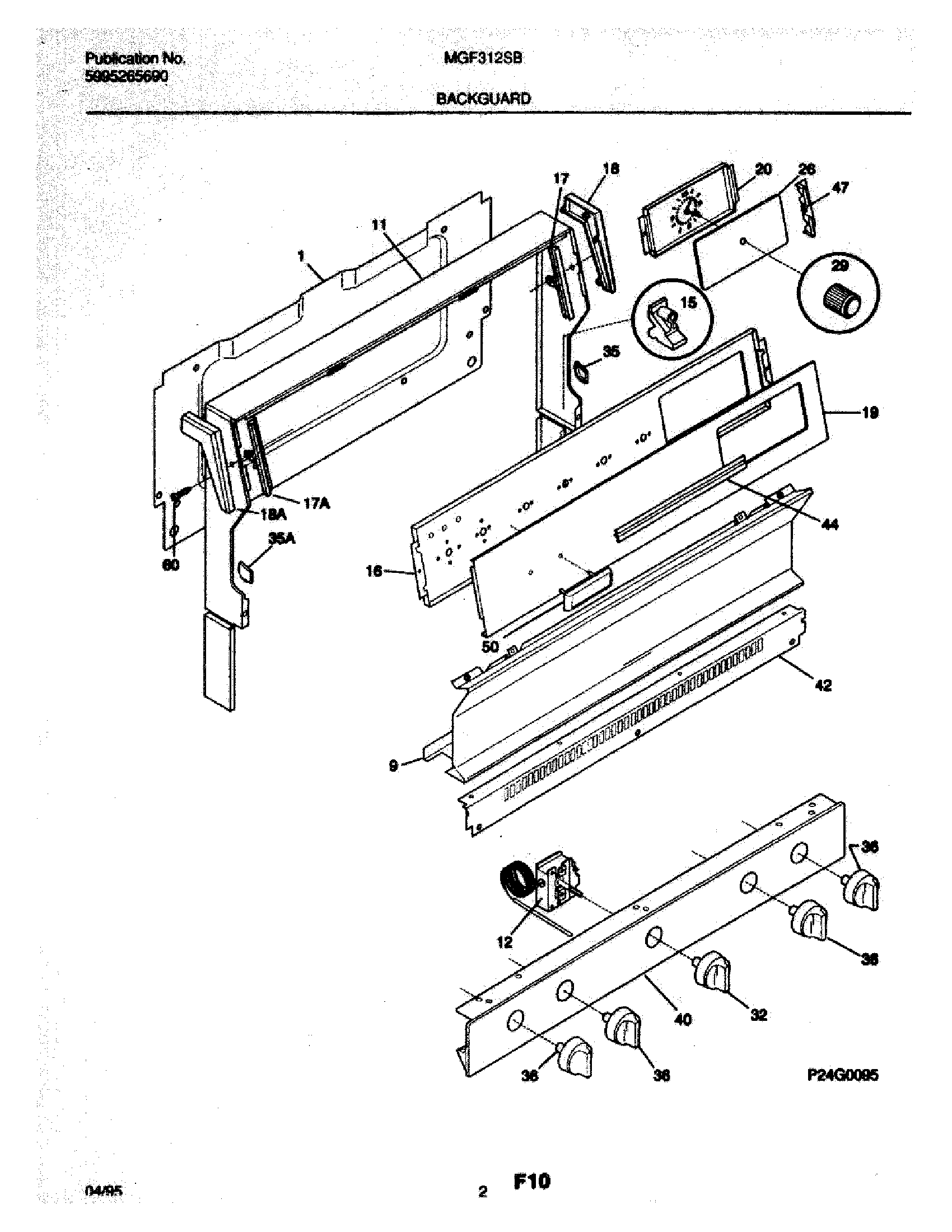

MGF312SBWB 03 – BACKGUARDadmin2025-04-26T11:36:02+00:00MGF312SBWB 03 – BACKGUARD
Products
| Position | Product |
|---|
| 316021105 Frigidaire Oven Screw |
| WCI 5303281584 |
| 1 | SHIELD-BACKGUARD,REAR WALL |
| 9 | WCI 316043501 |
| 11 | WCI 3204755 |
| 12 | 316032411 Frigidaire Stove Temperature Control Thermostat |
| 12 | INSULATOR-THERMOSTAT (NOT ILLUSTRATED) |
| 15 | SUPPORT-BACKGUARD,(2) |
| 16 | WCI 316042601 |
| 17 | TRIM-GLASS RETAINER,RH |
| 17A | TRIM-GLASS RETAINER,LH |
| 18A | WCI 5303272307 |
| 18 | WCI 5303272308 |
| 19 | PANEL-CONTROL, METAL |
| 20 | CLOCK/TIMER, 1 STEM |
| 26 | LENS-CLOCK, GLASS |
| 29 | WCI 316029000 |
| 32 | WCI 5303288194 |
| 35 | CAP-RH |
| 35A | CAP-LH |
| 36 | KNOB-TOP VALVE, (4) |
| 40 | WCI 316009220 |
| 42 | WCI 3131241 |
| 44 | WCI 3131468 |
| 47 | RETAINER, CLOCK GLASS, (2) |
| 50 | WCI 316067000 |
| 60 | WCI 5303289970 |
