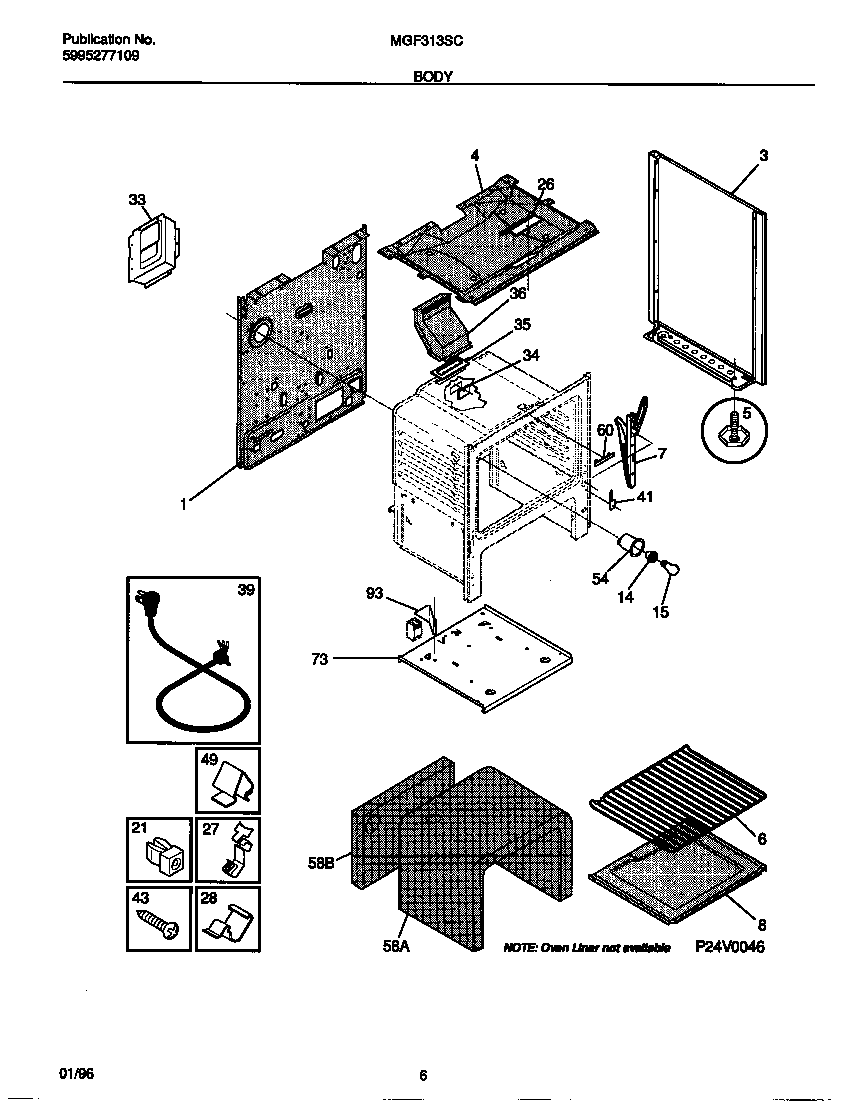

MGF313SCWB 04 – BODY

Products

Position	Product
*17083	WCI 5303281584
*17082	WCI 3131192
1	WCI 316029410
3	WCI 316081004
3	WCI 316081005
4	WCI 316011908
5C	316116000 Frigidaire Screw
5D	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B	WCI 3934058
5A	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7A	Hinge,oven door ,(2)
7B	3203010 Frigidaire Clip
8B	316064600 Frigidaire Oven Support
8A	BTTM-OVEN
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
26	WCI 08067757
27	5303284616 Frigidaire Range Bulb Clip Thermostat
28	CLIP-WIRE
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	316204402 Frigidaire Oven Flue
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
49	3205821 Frigidaire Clip
54	WCI 5303271606
58	INSUL – OVEN BACK (NON-ILLUSTRATED)
58	INSULATION, OVEN WRAPPER
60	COVER-OVEN FRONT
73	BASE-BROIL
93	WCI 316055501
