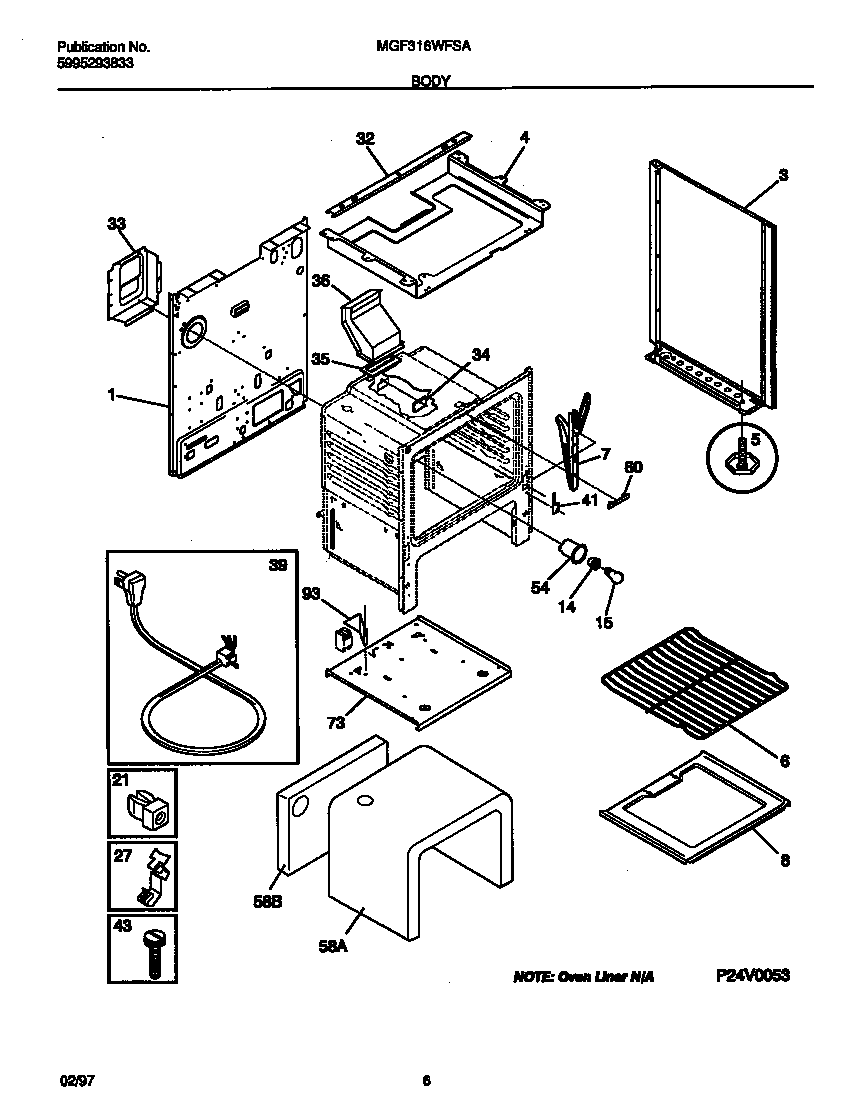

MGF316WFSA 04 – BODY

MGF316WFSA 04 – BODY

Written by

in

MGF316WFSA 04 – BODY

Products

PositionProduct
*928843131903 Frigidaire Door/Drawer Bumper
*92883WCI 316073400
*92882Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081028
3WCI 316081029
4WCI 316067206
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
73203010 Frigidaire Clip
8316064600 Frigidaire Oven Support
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
