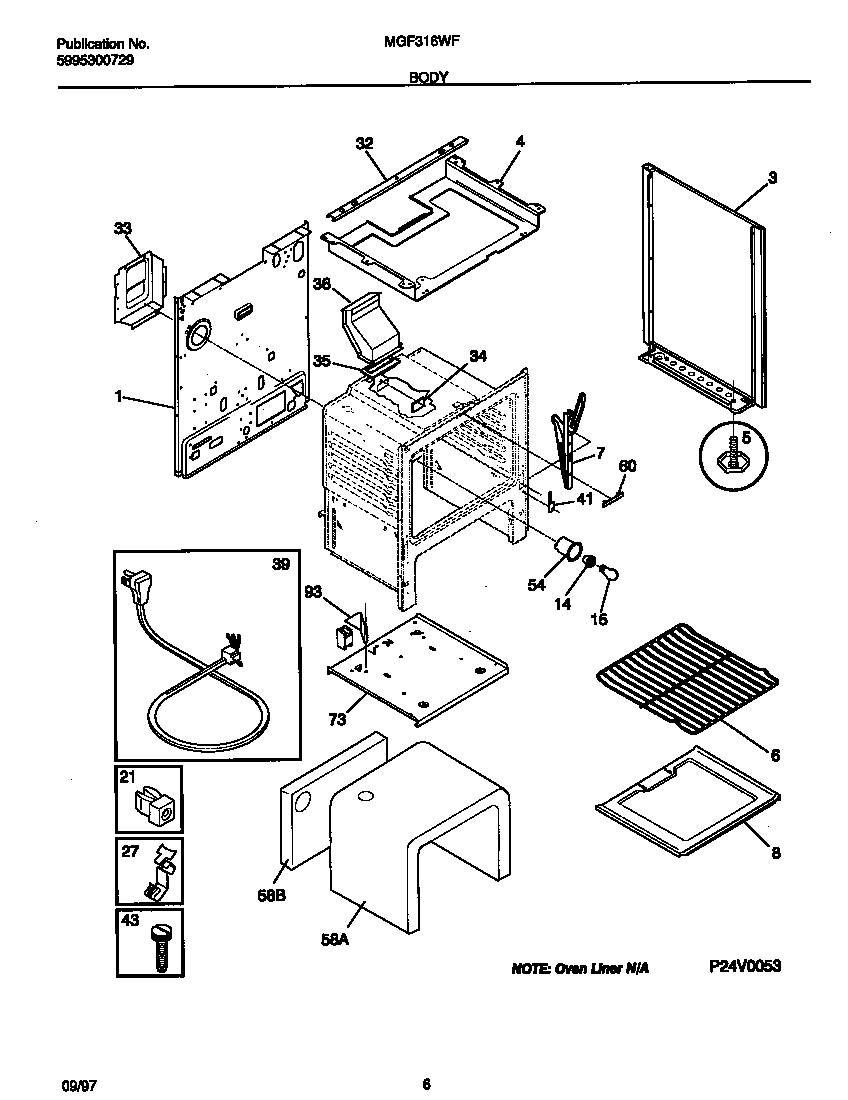

MGF316WFSB 04 – BODY

MGF316WFSB 04 – BODY

Written by

in

MGF316WFSB 04 – BODY

Products

PositionProduct
*91964WCI 316073400
*919623131903 Frigidaire Door/Drawer Bumper
*91963Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081028
3WCI 316081029
4WCI 316067206
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
5WCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
73203010 Frigidaire Clip
8BTTM-OVEN
8316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
325303289684 Frigidaire FASTENER
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055500
