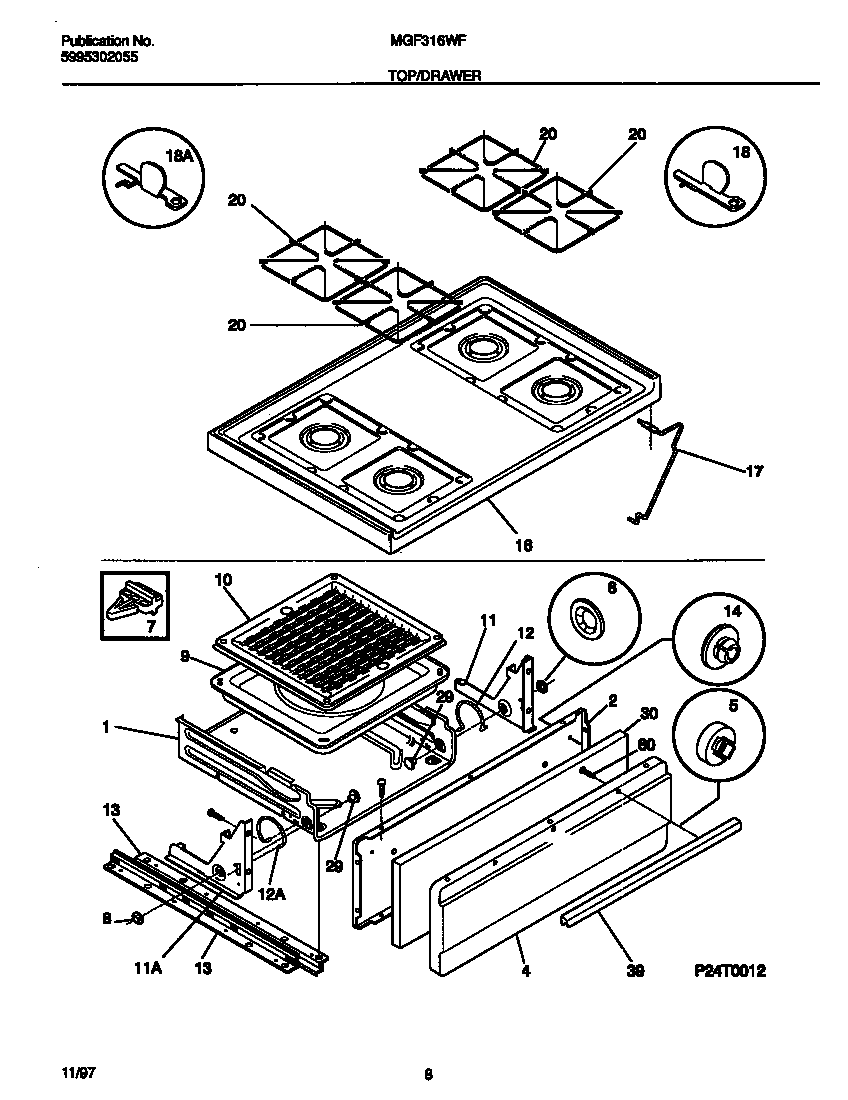

MGF316WFSC 05 – TOP/DRAWERadmin2025-04-26T11:54:26+00:00MGF316WFSC 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| *18330 | WCI 5303280311 |
| *18325 | WCI 3131190 |
| *18328 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *18326 | 3131903 Frigidaire Door/Drawer Bumper |
| *18327 | 316021105 Frigidaire Oven Screw |
| *18331 | 131243700 Frigidaire Screw |
| *18329 | WCI 316072100 |
| 1 | DRAWER-BROILER |
| 2 | WCI 3202803 |
| 4 | PANEL-BROILER, WHITE |
| 5 | FSTNR, SPACER (2) |
| 7 | GLIDE-DRAWER, REAR |
| 8 | WCI 3131386 |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 11 | BRACKET-BROILER HINGE, RH |
| 11 | BRACKET-BROILER HINGE, LH |
| 12 | WCI 3018618` |
| 12 | SPRING-BROILER, RH |
| 13 | WCI 3131153 |
| 14 | WCI 3206216 |
| 16 | WCI 3131333 |
| 17 | WCI 316066900 |
| 18 | BRACKET-HINGE,MAIN TOP LH |
| 18 | BRACKET-HINGE,MAIN TOP RH |
| 20 | WCI 316088901 |
| 29 | PIN, HINGE (2) |
| 30 | INSULATION, BROILER DRAWER |
| 39 | WCI 316019505 |
| 60 | 316089500 Frigidaire Oven Screw |
