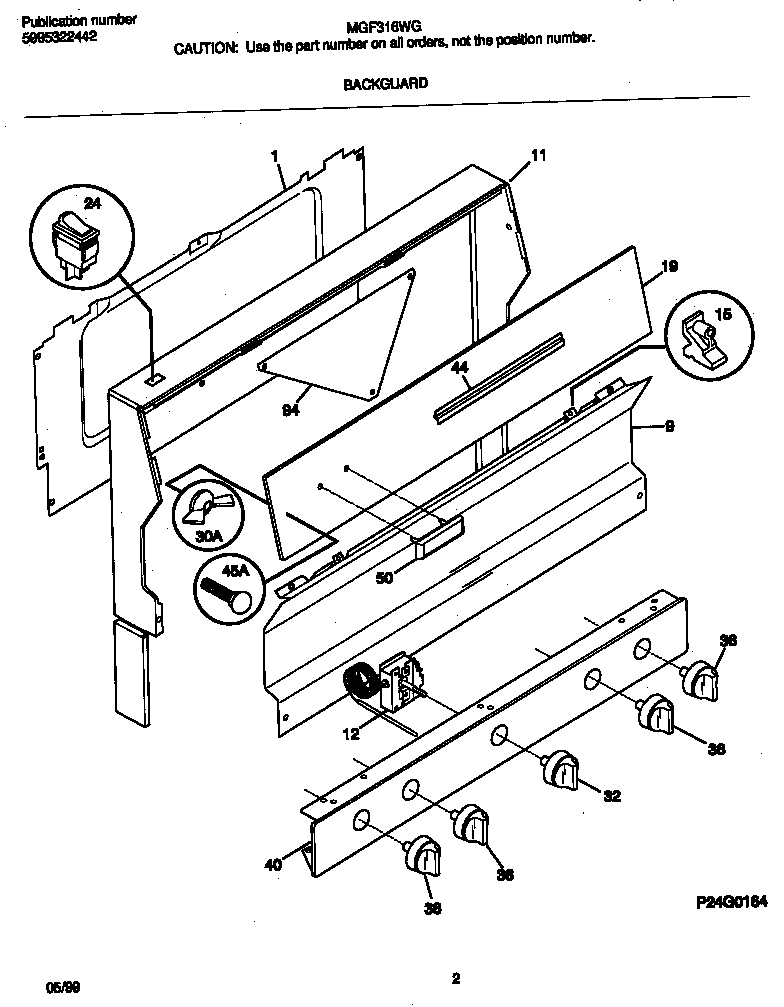

MGF316WGSC 02 – BACKGUARD

Products

Position	Product
*97121	316137003 Frigidaire Range / Cooktop End Cap
*97123	316021109 Frigidaire Oven Screw
*97122	Screw,cup pt ,8-18 x 0.375 ,chrome
*97125	316112500 Frigidaire Oven Template
*97124	Instructions,installation
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043611
11	WCI 316083716
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	SUPPORT-BACKGUARD,(2)
19	WCI 316034121
24	5304527842 Frigidaire Rocker Switch
30	WCI 316064300
32	316102303 Frigidaire P-1 Knob
36	316009046 Frigidaire Oven Knob
40	PANEL-MANIFOLD
44	WCI 3131468
45	BOLT-FASTENER,NYLON ,WHITE
50	WCI 316096901
94	WCI 316111300
