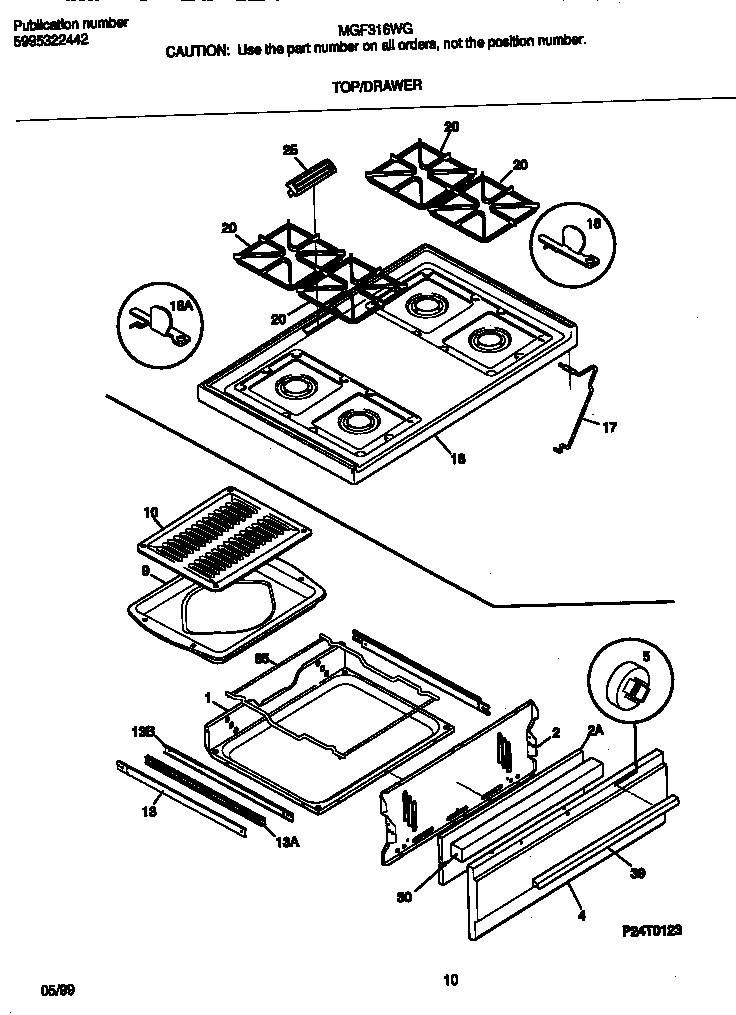

MGF316WGSC 05 – TOP/DRAWER

MGF316WGSC 05 – TOP/DRAWER

Written by

in

MGF316WGSC 05 – TOP/DRAWER

Products

PositionProduct
*97140WCI 316072100
*97141WCI 5303280311
*97136Screw,cup pt ,8-18 x 0.375 ,chrome
*97137316021109 Frigidaire Oven Screw
*97142316021105 Frigidaire Oven Screw
1WCI 316110201
2WCI 316110800
2WCI 316110101
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
9WCI 316073800
10WCI 3205234
13GLIDE-DRAWER,OUTER
13WCI 316111600
13WCI 316111501
16WCI 316104401
17WCI 316066900
18BRACKET-HINGE,MAIN TOP RH
18BRACKET-HINGE,MAIN TOP LH
20WCI 316088900
25WCI 316104500
30WCI 316111400
39WCI 316019505
443131903 Frigidaire Door/Drawer Bumper
85WCI 316115600
