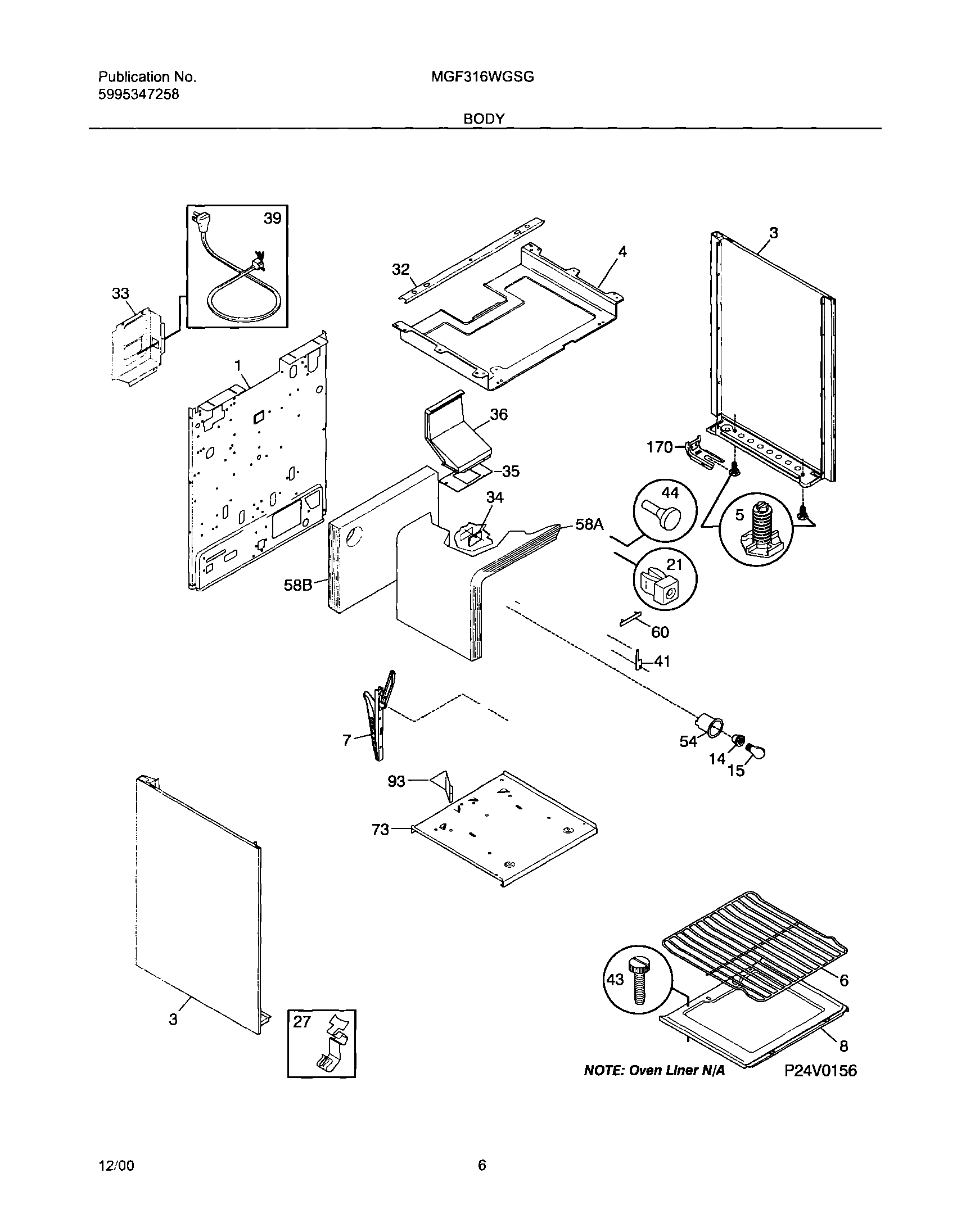

MGF316WGSG 09 – BODY

MGF316WGSG 09 – BODY

Written by

in

MGF316WGSG 09 – BODY

Products

PositionProduct
NIWCI 5303280311
NI5303289684 Frigidaire FASTENER
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316064600 Frigidaire Oven Support
NIWCI 316073400
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI5303285179 Frigidaire Oven Door Screw
1WCI 316029416
3WCI 316081034
3WCI 316081035
4WCI 316067206
5WCI 316129200
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 316107501
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54AWCI 5303271606
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
73WCI 316109902
93WCI 316110000
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
170316116000 Frigidaire Screw
185316112900 Frigidaire SHIELD
