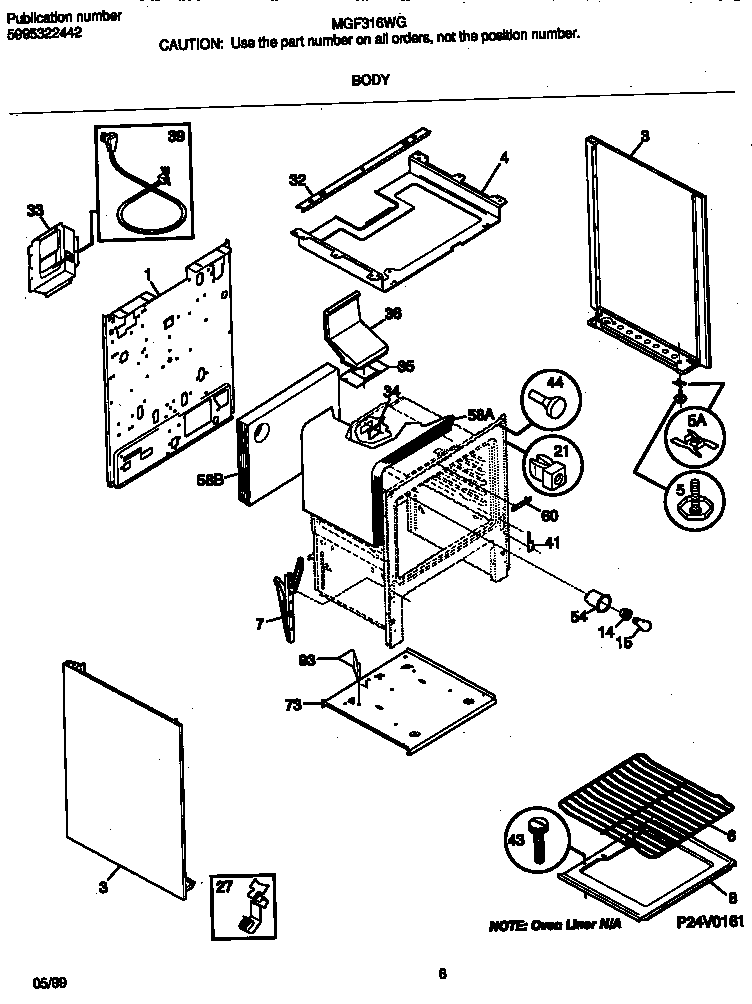

MGF316WGTA 04 – BODY

MGF316WGTA 04 – BODY

Written by

in

MGF316WGTA 04 – BODY

Products

PositionProduct
*97131PANEL-BODYSIDE,ALMOND ,LH
*97133316116000 Frigidaire Screw
*97134316064600 Frigidaire Oven Support
*97132WCI 3934058
*97129Screw,cup pt ,8-18 x 0.375 ,chrome
*97130WCI 316073400
*971355303289684 Frigidaire FASTENER
1WCI 316029412
3WCI 316081030
4WCI 316067206
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
54WCI 5303271606
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73WCI 316109901
93WCI 316110000
185316112900 Frigidaire SHIELD
