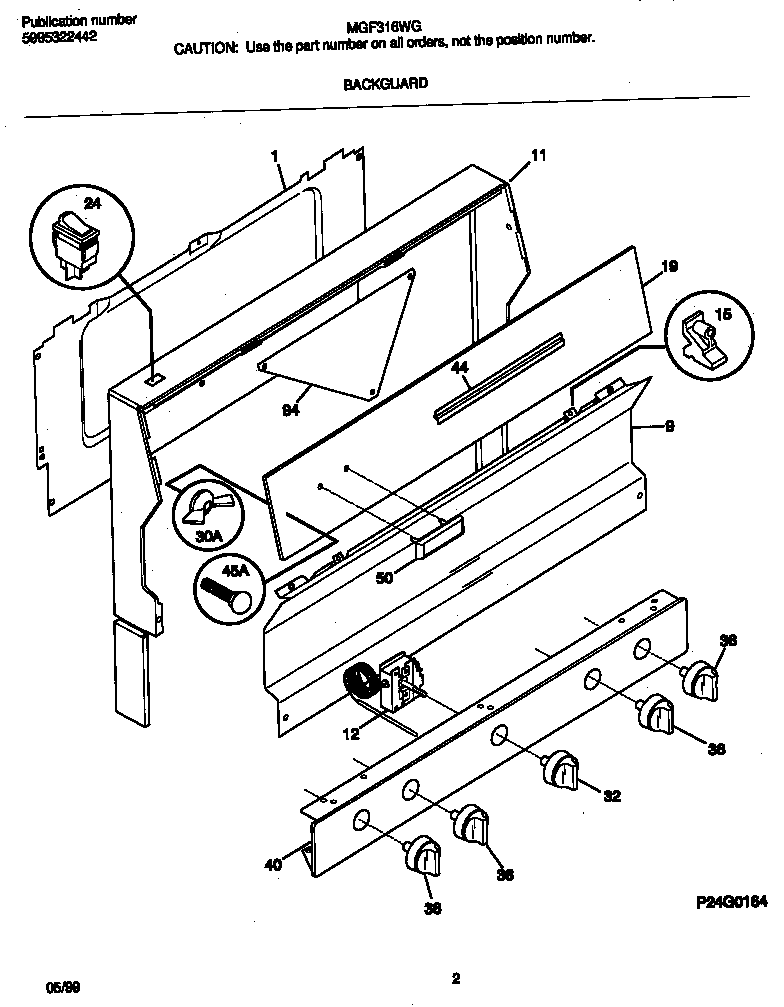

MGF316WGTC 02 – BACKGUARDadmin2025-04-26T11:54:02+00:00MGF316WGTC 02 – BACKGUARD
Products
| Position | Product |
|---|
| *97123 | 316021109 Frigidaire Oven Screw |
| *97124 | Instructions,installation |
| *97121 | End Cap,handle ,almond ,(2) |
| *97125 | 316112500 Frigidaire Oven Template |
| *97122 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| 1 | SHIELD-BACKGUARD,REAR WALL |
| 9 | WCI 316043615 |
| 11 | WCI 316083717 |
| 12 | 316032411 Frigidaire Stove Temperature Control Thermostat |
| 15 | SUPPORT-BACKGUARD,(2) |
| 19 | WCI 316034123 |
| 24 | SWITCH-ROCKER,OVEN LIGHT ,ALMOND |
| 30 | WCI 316064300 |
| 32 | Knob-thermostat,white |
| 36 | WCI 316102316 |
| 40 | WCI 316086840 |
| 44 | WCI 3131468 |
| 45 | Bolt,fastener ,nylon ,almond ,(2) |
| 50 | WCI 316096902 |
| 94 | WCI 316111300 |
