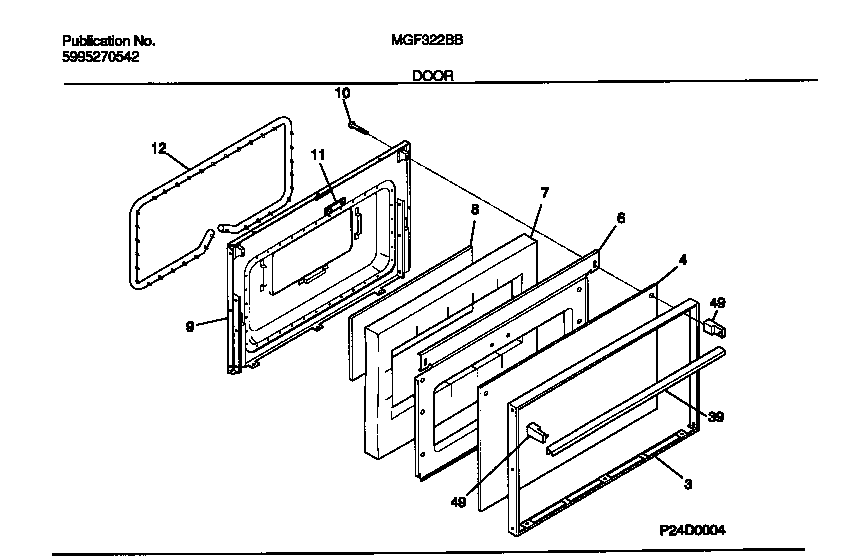

MGF322BBDC 06 – DOOR

MGF322BBDC 06 – DOOR

Written by

in

MGF322BBDC 06 – DOOR

Products

PositionProduct
*18529SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*18533WCI 5303280311
*18528WCI 316071600
*185325303271648 Frigidaire Oven Screw
*185345303285179 Frigidaire Oven Door Screw
*185305303300265 Frigidaire Oven Screw
*18531WCI 5303269859
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
6SHIELD-INSULATION
7WCI 316076401
7AINSULATION-OVEN DR
8WCI 316050303
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11WCI 5303015373
125303202011 Frigidaire Door Seal
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
