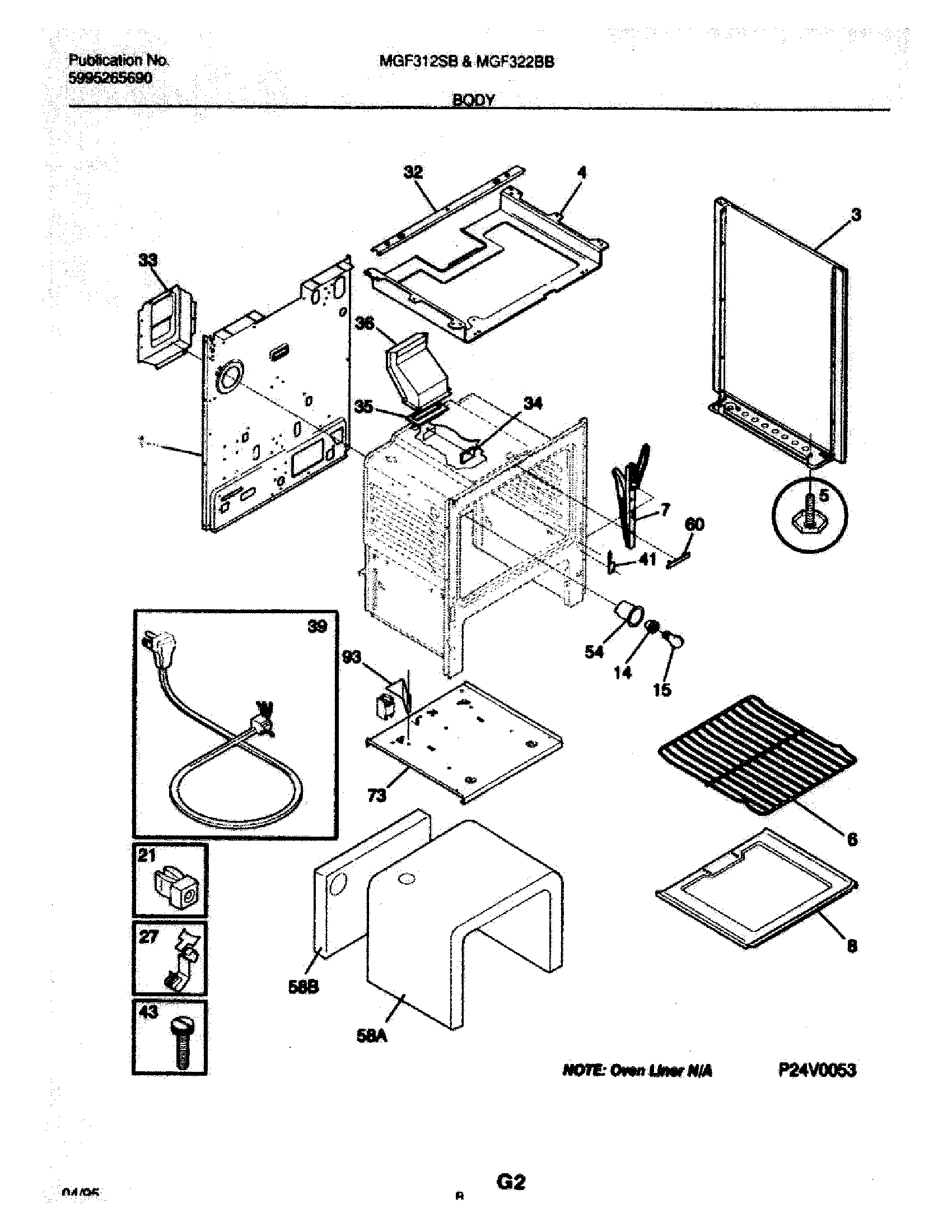

MGF322BBWB 09 – BODY

Products

Position	Product
	WCI 316001204
	WCI 5303281584
	WCI 5303280614
	WCI 316056500
1	WCI 316029410
3	WCI 316081004
3	WCI 316081005
4	WCI 316067204
5	316116000 Frigidaire Screw
5	SCREW-LEVELING
5	WCI 3934058
5	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
7	3203010 Frigidaire Clip
8	316064600 Frigidaire Oven Support
8	BTTM-OVEN
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
58A	INSULATION, OVEN WRAPPER
58B	INSUL – OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
73	BASE-BROIL
93	WCI 316055501
