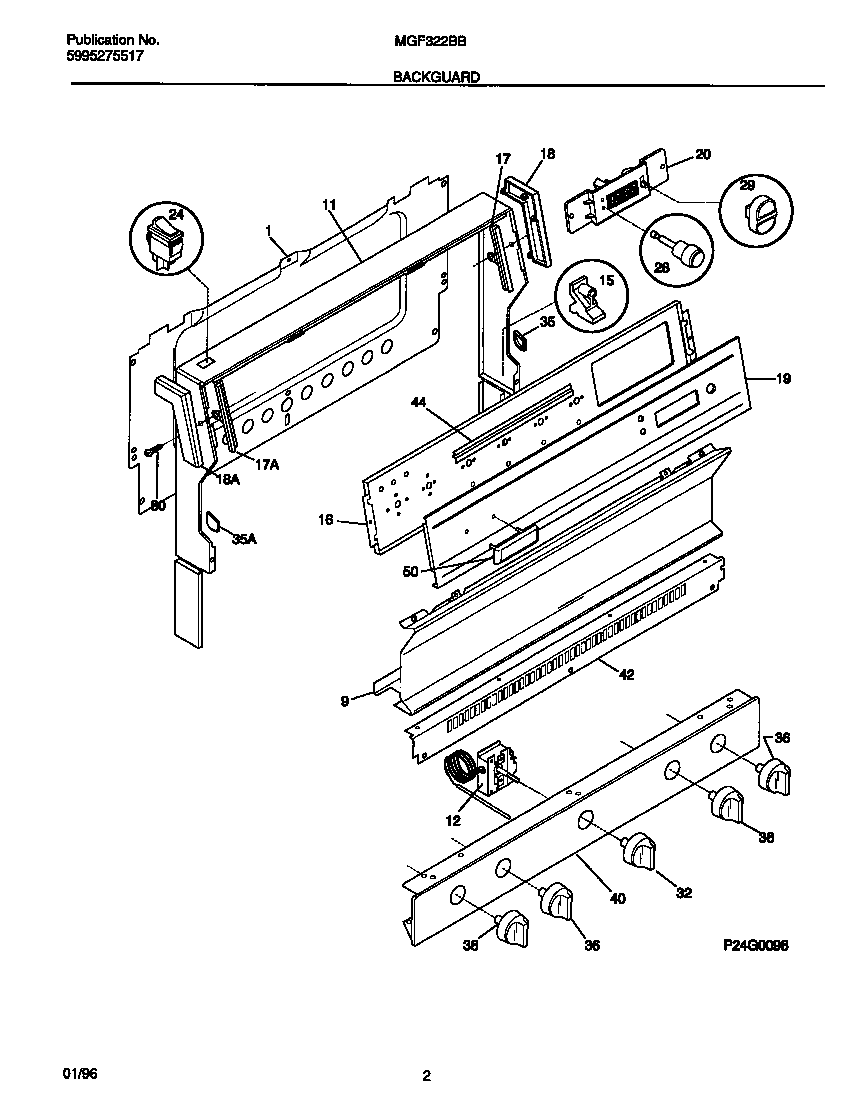

MGF322BBWD 02 – BACKGUARD

MGF322BBWD 02 – BACKGUARD

Written by

in

MGF322BBWD 02 – BACKGUARD

Products

PositionProduct
*49760WCI 5303281584
*49761WCI 5303289970
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043501
11WCI 316083712
12A316032411 Frigidaire Stove Temperature Control Thermostat
12BINSULATOR-THERMOSTAT (NOT ILLUSTRATED)
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,LH
17TRIM-GLASS RETAINER,RH
18WCI 5303272308
18WCI 5303272307
19WCI 316034509
20WCI 5303272309
245304527841 Frigidaire Oven Rocker Switch (Black)
28BUTTON-CLOCK
29KNOB-TIMER BUTTON
32WCI 5303288194
35CAP-LH
35CAP-RH
36KNOB-TOP VALVE, (4)
40WCI 316009220
42WCI 316084300
44WCI 3131468
50WCI 316067003
60316021105 Frigidaire Oven Screw
