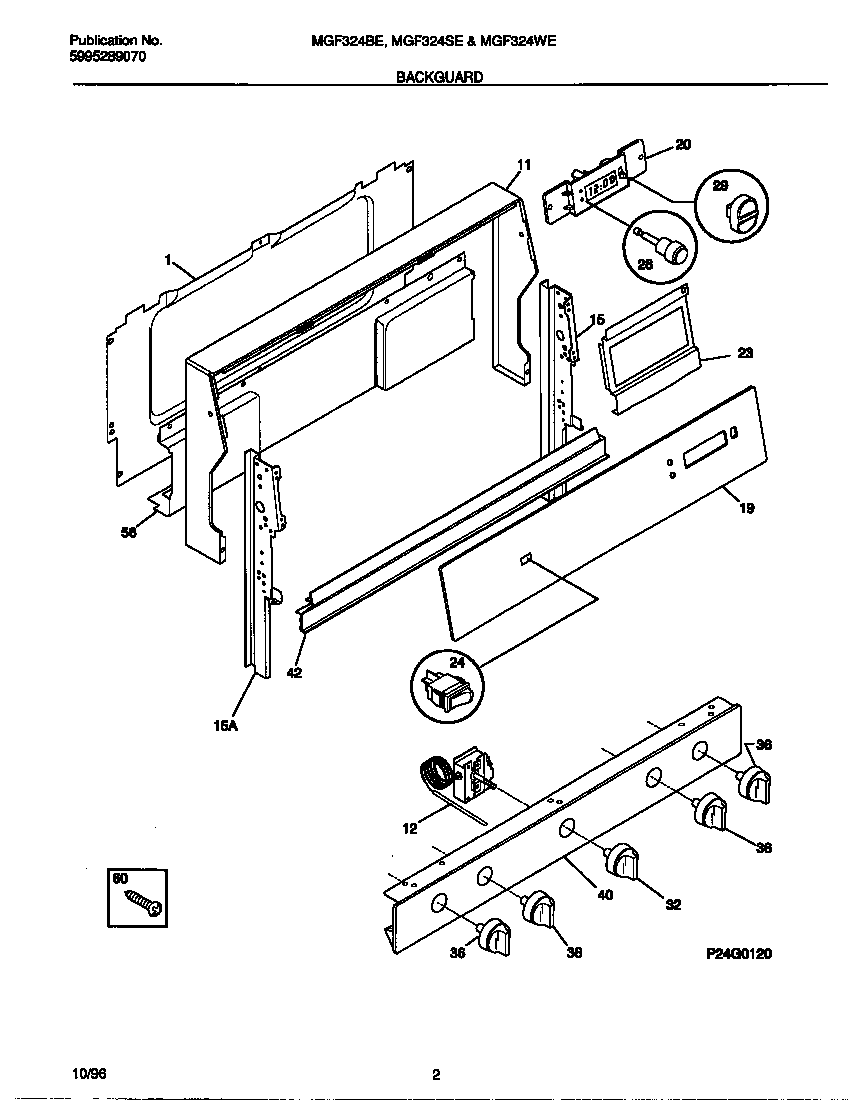

MGF324BEWB 02 – BACKGUARD

Products

Position	Product
*98520	316021105 Frigidaire Oven Screw
*98522	WCI 316067003
*98521	Screw,cup pt ,8-18 x 0.375 ,chrome
1	SHIELD-BACKGUARD, REAR WALL
11	WCI 316061846
12	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	WCI 316023111
15	WCI 316023110
19	WCI 316082606
20	WCI 316096000
23	WCI 316079003
24	5304527841 Frigidaire Oven Rocker Switch (Black)
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	316102300 Frigidaire Oven Knob
36	KNOB-TOP VALVE, (4)
40	WCI 316062325
42	WCI 316083300
56	WCI 316074902
