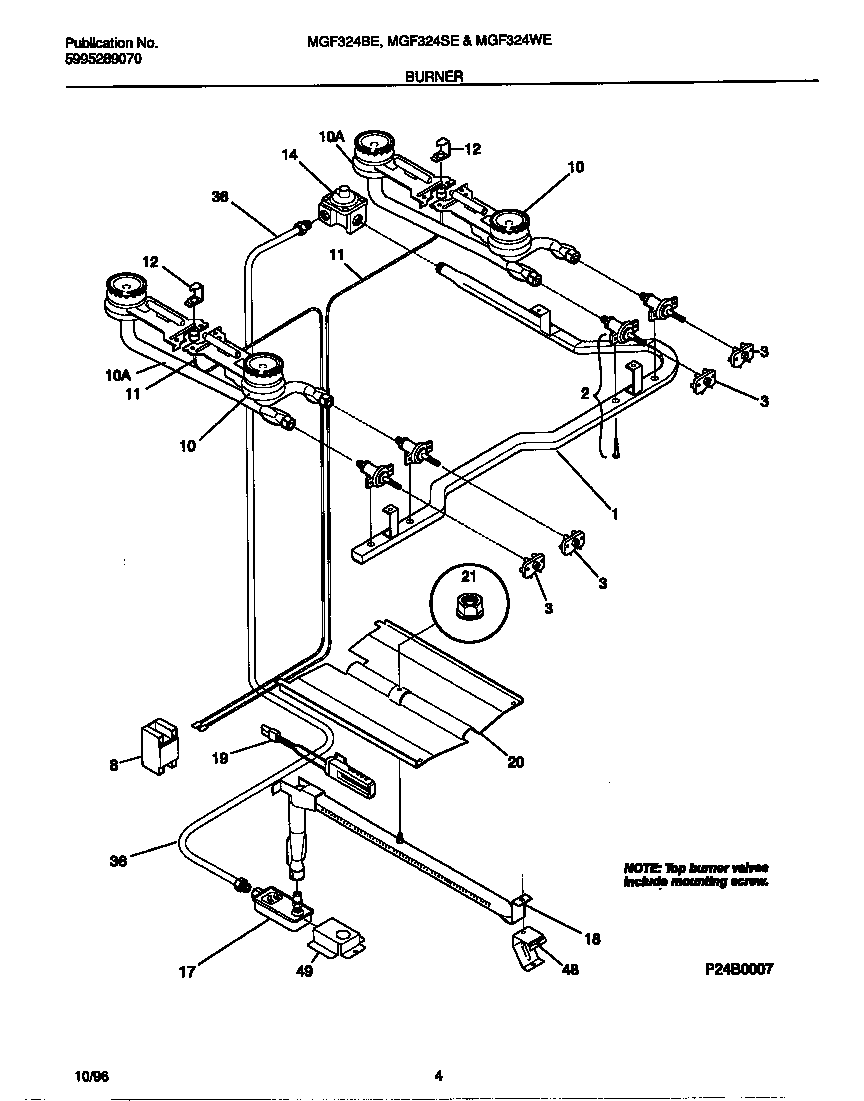

MGF324BEWB 03 – BURNER

MGF324BEWB 03 – BURNER

Written by

in

MGF324BEWB 03 – BURNER

Products

PositionProduct
1WCI 5303272435
2316048200 Frigidaire Oven Screw
2VALVE-TOP BURNER, 2 POSITION, (4), W/SCREWS
3BSWITCH HARNESS TERMINAL KIT
3AWCI 316032001
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
105304506427 Frigidaire Oven Range Surface Burner (White)
105304506426 Frigidaire Oven Top Rear Burner
11AIGNITER-TOP BURNER, BASE, (2)
11BIGNITER-TOP BURNER, BASE, 33“
123016993 Frigidaire Oven Retainer
14AWCI 316082900
14B316021104 Frigidaire Oven Screw Assembly
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
36WCI 316083000
48WCI 3018603
49BRKT.-VALVE
