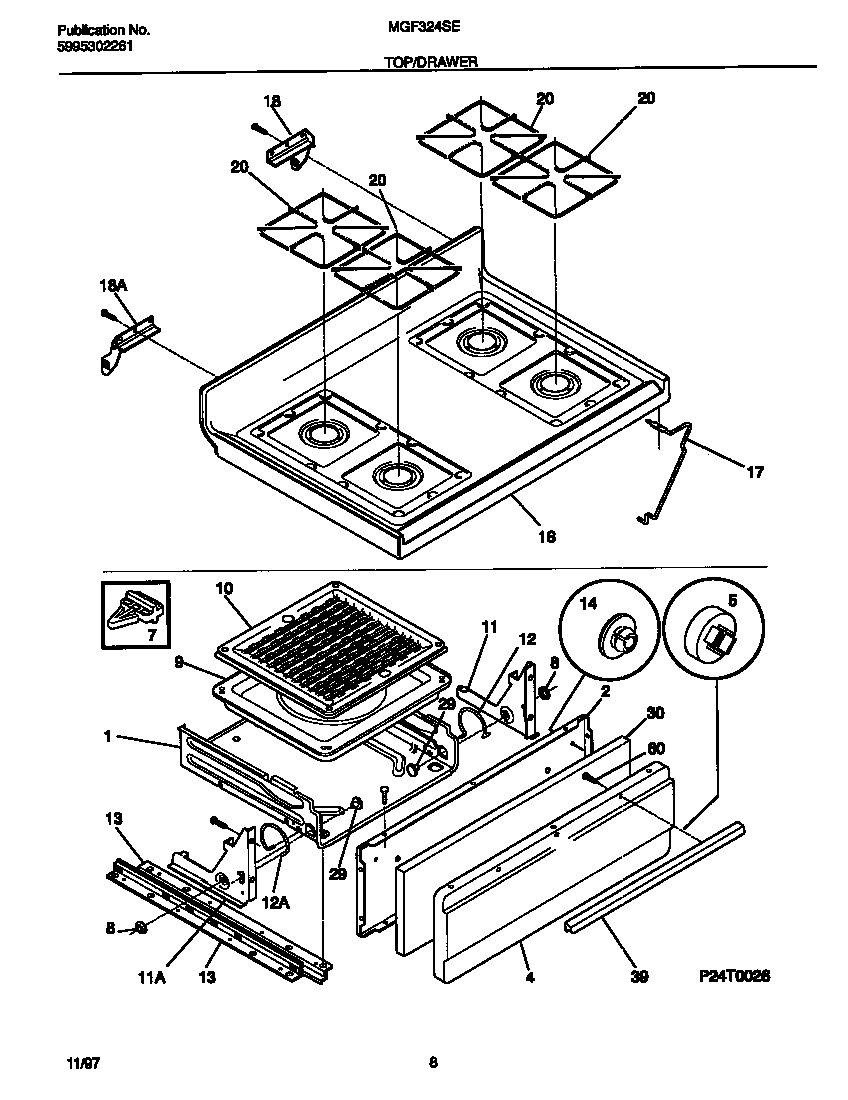

MGF324SEDD 05 – TOP/DRAWER

MGF324SEDD 05 – TOP/DRAWER

Written by

in

MGF324SEDD 05 – TOP/DRAWER

Products

PositionProduct
*72245WCI 5303280311
*72244Screw,cup pt ,8-18 x 0.375 ,chrome
*72246131243700 Frigidaire Screw
1DRAWER-BROILER
2WCI 3202803
4WCI 316056206
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11BRACKET-BROILER HINGE, LH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303285572
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
20WCI 316088900
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, BRUSHED CHROME
60316021105 Frigidaire Oven Screw
