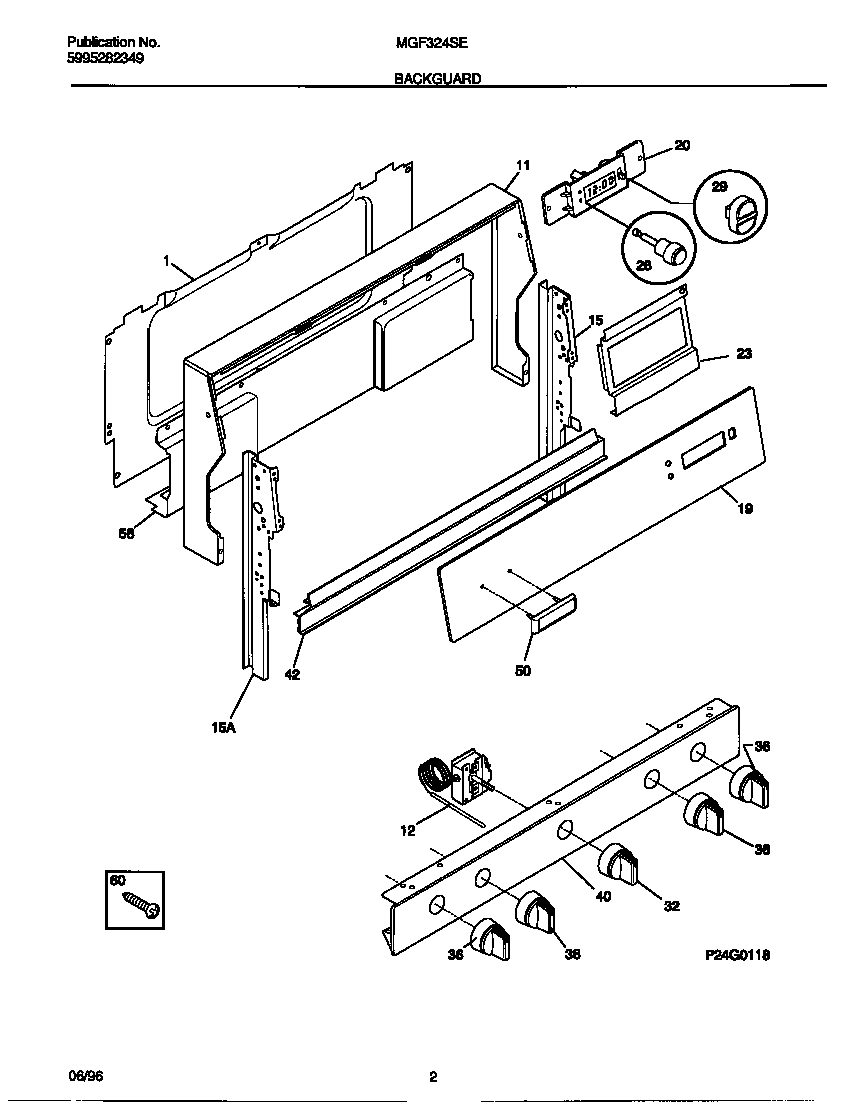

MGF324SEWA 02 – BACKGUARD

MGF324SEWA 02 – BACKGUARD

Written by

in

MGF324SEWA 02 – BACKGUARD

Products

PositionProduct
*81320Screw,cup pt ,8-18 x 0.375 ,chrome
1SHIELD-BACKGUARD, REAR WALL
11WCI 316061846
12BINSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12A316032411 Frigidaire Stove Temperature Control Thermostat
15WCI 316023110
15WCI 316023111
19WCI 316082605
20WCI 316096000
23WCI 316079003
28BUTTON-CLOCK
29KNOB-TIMER BUTTON
32316102300 Frigidaire Oven Knob
36KNOB-TOP VALVE, (4)
40WCI 316062325
42WCI 316083300
50WCI 316067003
56WCI 316074902
60316021105 Frigidaire Oven Screw
