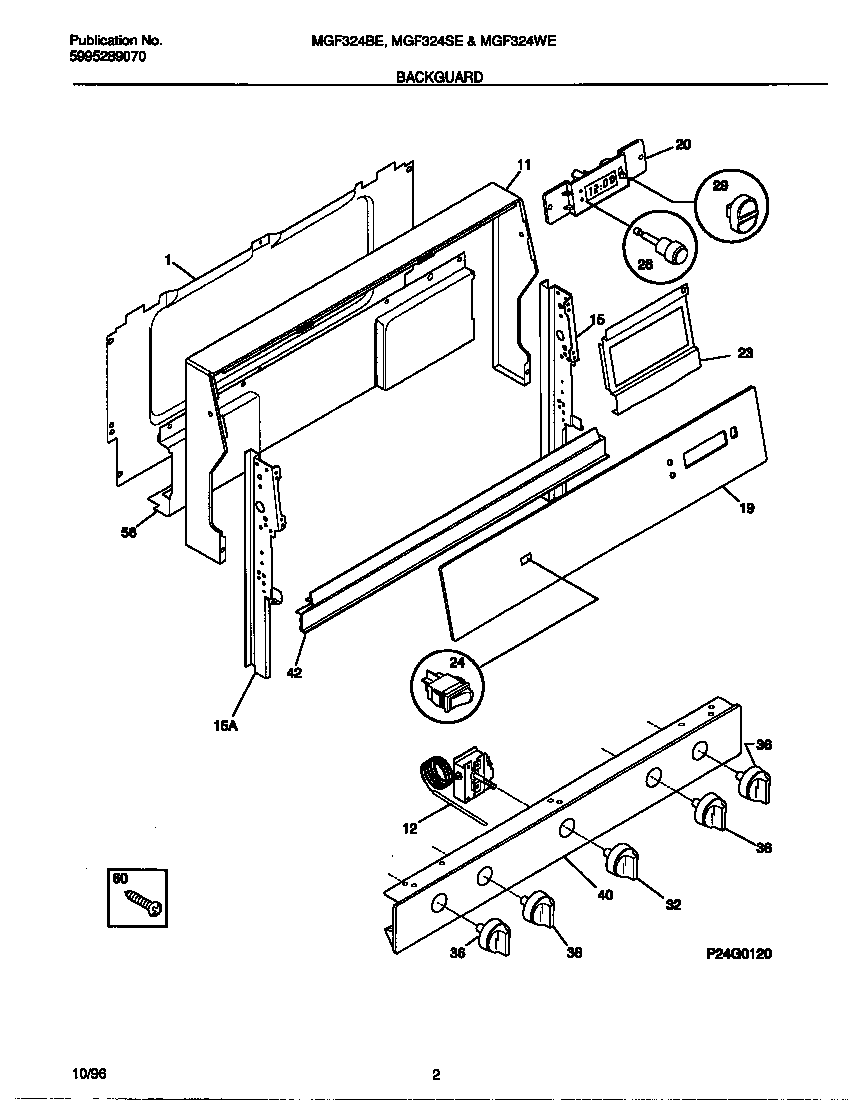

MGF324SEWB 02 – BACKGUARD

Products

Position	Product
*98520	316021105 Frigidaire Oven Screw
*98521	Screw,cup pt ,8-18 x 0.375 ,chrome
*98522	WCI 316067003
1	SHIELD-BACKGUARD, REAR WALL
11	WCI 316061846
12	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	WCI 316023110
15	WCI 316023111
19	WCI 316082605
20	WCI 316096000
23	WCI 316079003
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	316102300 Frigidaire Oven Knob
36	KNOB-TOP VALVE, (4)
40	WCI 316062325
42	WCI 316083300
56	WCI 316074902
