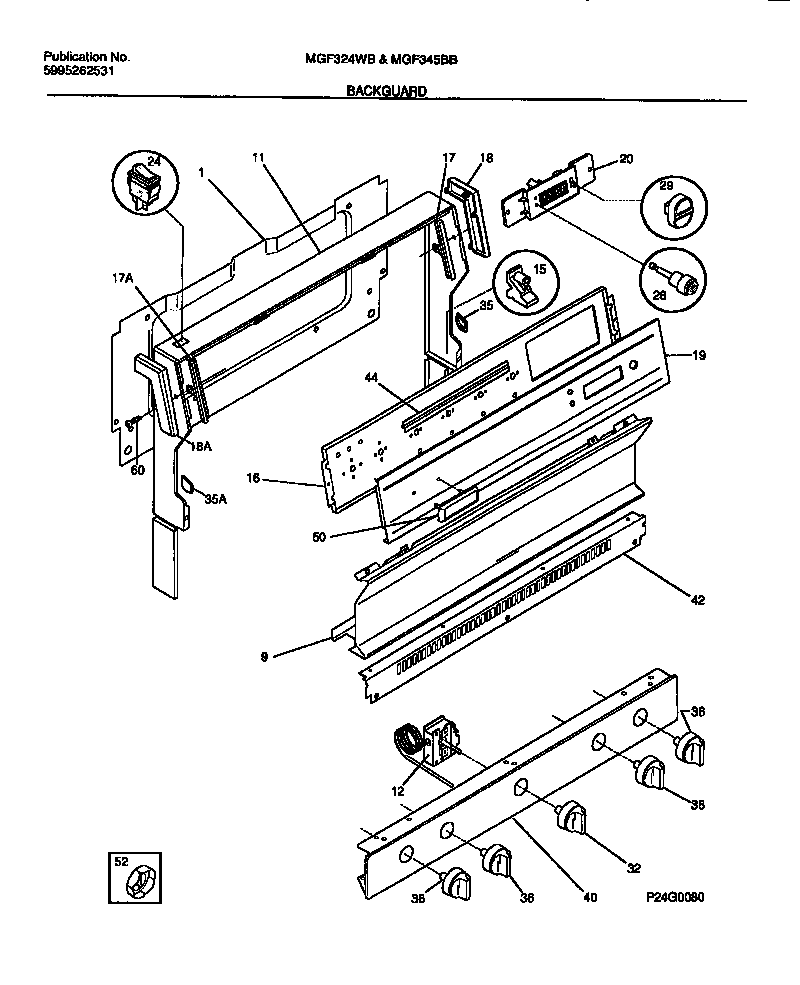

MGF324WBSB 02 – BACKGUARD

Products

Position	Product
*15524	316021105 Frigidaire Oven Screw
*15523	WCI 5303281584
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043501
11	WCI 5303283833
12	316032411 Frigidaire Stove Temperature Control Thermostat
12A	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17	WCI 316037401
17A	WCI 316037400
18	WCI 3204747
18A	WCI 3204746
19	WCI 316034525
20	WCI 5303272309
24	WCI 5303285911
28	WCI 316017302
29	WCI 316028401
32	WCI 5303293705
36	WCI 5303293703
40	WCI 316009260
42	WCI 3131241
44	WCI 3131468
50	WCI 316067002
52	NUT, TWIST
60	SCREW-END CAP
