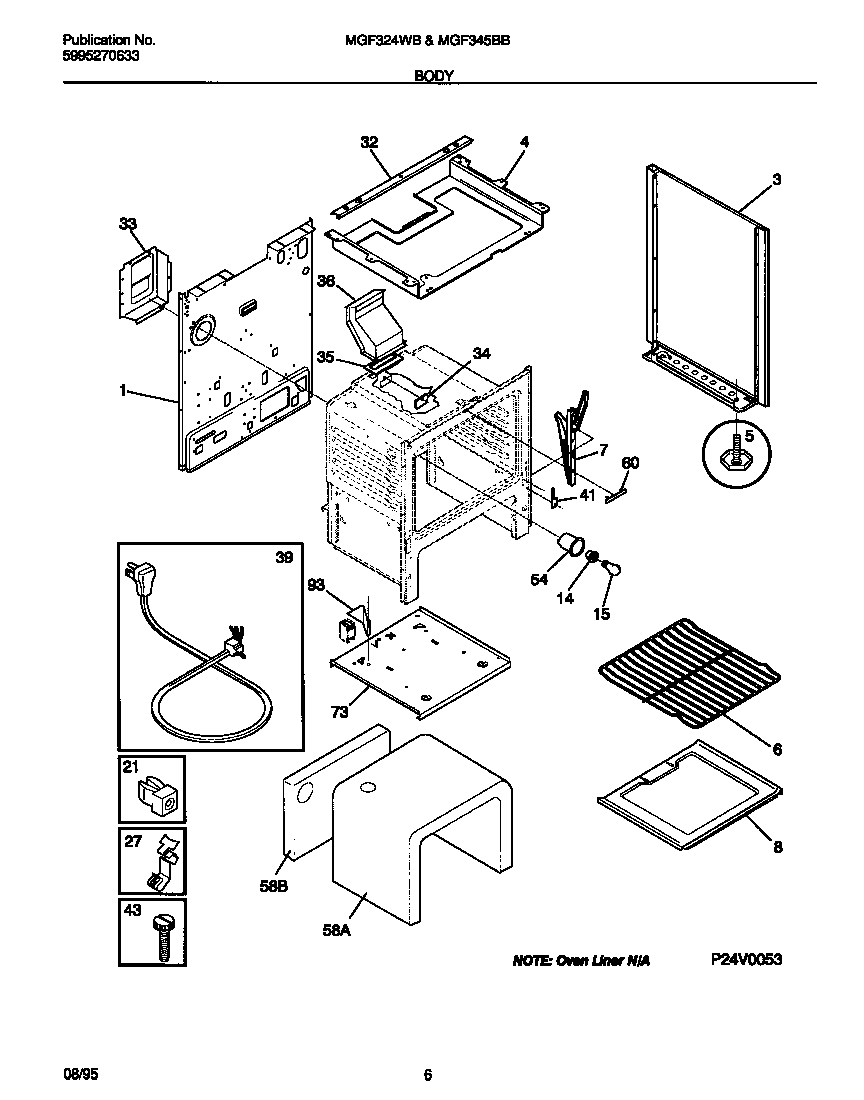

MGF324WBSC 04 – BODY

Products

Position	Product
*21848	WCI 316001219
*21847	WCI 5303281584
*21846	WCI 5303280614
*21845	WCI 316056500
*21844	WCI 08067961
1	WCI 316029410
3	WCI 316081004
3A	WCI 316081005
4	WCI 316067204
5B	316116000 Frigidaire Screw
5	SCREW-LEVELING
5A	WCI 3934058
5C	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6	316067902 Frigidaire Oven Rack
7A	3203010 Frigidaire Clip
7	Hinge,oven door ,(2)
8A	316064600 Frigidaire Oven Support
8	BTTM-OVEN
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
58A	INSULATION, OVEN WRAPPER
58B	INSUL – OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
73	BASE-BROIL
93	WCI 316055501
