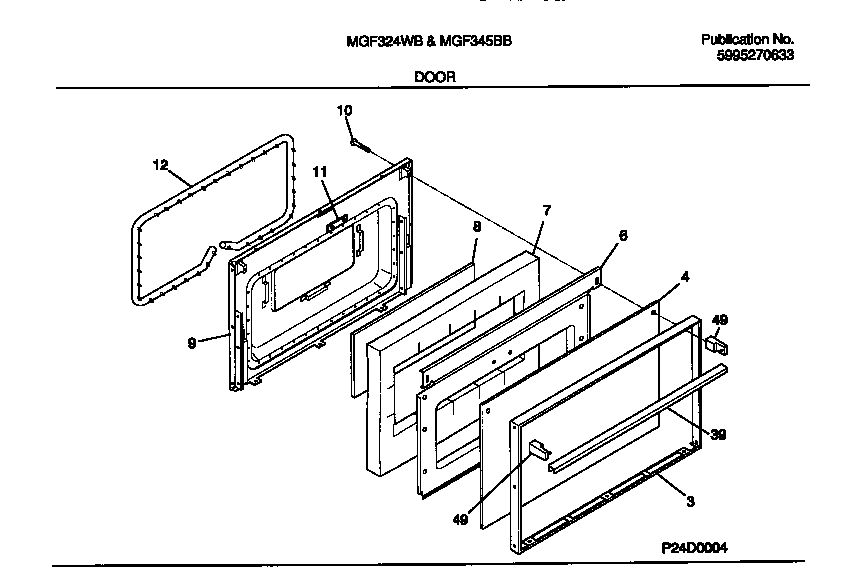

MGF324WBSC 07 – DOOR

MGF324WBSC 07 – DOOR

Written by

in

MGF324WBSC 07 – DOOR

Products

PositionProduct
*21860SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*21864WCI 5303280311
*21859WCI 316071600
*218635303271648 Frigidaire Oven Screw
*218655303285179 Frigidaire Oven Door Screw
*218615303300265 Frigidaire Oven Screw
*21862WCI 5303269859
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
6SHIELD-INSULATION
7WCI 316076401
8WCI 316050303
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11WCI 5303015373
125303202011 Frigidaire Door Seal
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
